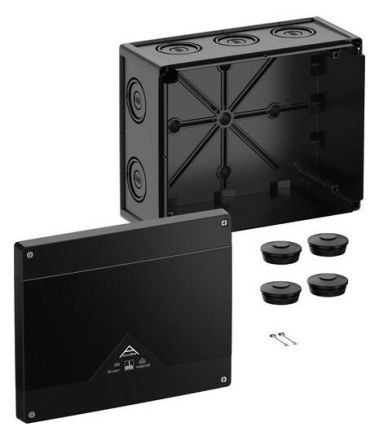

Spelsberg 42500001 Abox Pro 250-L/sw IP66/IP67/IP69 junction box

Spelsberg 42500001 Abox Pro 250-L/sw IP66/IP67/IP69 junction box

In stock

SKU: 1061023

Price on request

€38.48

€0

Overview

Junction box, with protection class IP66/IP67/IP69, nominal cross-section 25mm², certified by (DIN EN 60670-1/-22 (VDE 0606-1/-22)), DLG (ammonia resistance), DNV (class: ships & offshore facilities), deflection membranes, M20/M25/M40/M50, (4 at the rear, 10 at the side), internal fastening points, for installations in industrial environments and unprotected outdoor areas, black, Ui=1000 V AC, without terminalsDimensions:252 x 202 x 120mmIncluded accessories:4 double membrane nozzles IP66 M40 sealing range 17-28mm, cover loss protection

Eigenschaft	Wert
Schutzart (IP):	IP66/IP67/IP69
Länge:	202 mm
Breite:	252 mm
Weight:	115.9
Weight unit:	KG
Mounting type:	Wall/ceiling mounting
Color:	black
Version:	Connection box
Halogen-free:	yes
Depth:	120 mm
Shape:	rectangular
Surface:	untreated
Equipment:	without
Rated insulation voltage Ui:	1000 V
Sealable:	yes
Functional integrity:	without
Operating temperature:	-35 - 80 °C
Material:	Plastic
Number of entries:	14
Cover fastening:	screwed
Max. Conductor cross-section:	35 mm²
Weatherproof:	yes
Insertion from the rear:	yes
For Ex-Zone Gas:	without
Type of housing feedthrough:	Pre-knocked
For Ex zone dust:	without
Cover design:	without
Protection class (NEMA):	other
Brief description:	Junction box, Type of protection IP66/IP67/IP69, max. 25², IK09, Protection class II, Ui 1000V AC, Ui 1000V DC, DLG, DNV, Halogen free

Characteristics

HABAbox Pro 250-L/sw IP66/IP67/IP69

Manufacturer

HAN42500001

GTIN4013902663576

VersionJunction box

Cover designWithout

Rated insulation voltage Ui1000V

Width252 mm

Operating temperature-35 - 80 °C

Color

ShapeRectangular

Functional preservationWithout

Weight115,9

Weight unit kg

Halogen freeYes

Short descriptionJunction box, Type of protection IP66/IP67/IP69, max. 25², IK09, Protection class II, Ui 1000V AC, Ui 1000V DC, DLG, DNV, Halogen free

Length202 mm

Mounting typeWall/ceiling mounting

SurfaceUntreated

IP protection)IP66/IP67/IP69

Protection class (NEMA)Other

Depth120 mm

MaterialPlastic
