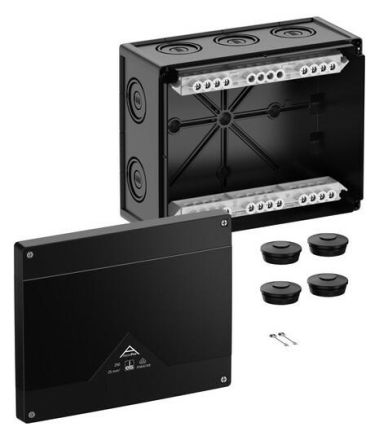

Spelsberg 42502001 Abox Pro 250-25 /sw IP66/IP67/IP69 junction box

In stock
SKU: 1061024
€50.04
Into a basketIn the basketGo

Overview

Junction box, with protection class IP66/IP67/IP69, nominal cross-section 25mm², certified by (DIN EN 60670-1/-22 (VDE 0606-1/-22)), DLG (ammonia resistance), DNV (class: ships & offshore installations), deflection membranes, M20/M25/M40/M50, (4 at the rear, 10 at the side), internal fastening points, for installations in industrial environments and unprotected outdoor areas, black, Ui=690 V AC, In=101 A, with high screw terminal, 5-pole-25mm², clampable cross-sections per pole: 12 x 10mm², 8 x 16mm², 4 x 25mm² Cu rigid / flexible with wire end ferruleDimensions: 252 x 202 x 120mmIncluded accessories:4 double membrane nozzles IP66 M40 sealing range 17-28mm, cover loss protection

Property Value
Protection class (IP): IP66/IP67/IP69
Length: 202 mm
Width: 252 mm
Weight: 138.58
Weight unit: KG
Mounting type: Wall/ceiling mounting
Color: black
Version: Connection box
Halogen-free: yes
Depth: 120 mm
Shape: rectangular
Surface: untreated
Equipment: screw terminal
Rated insulation voltage Ui: 690 V
Sealable: yes
Functional integrity: without
Operating temperature: -35 - 80 °C
Material: Plastic
Number of entries: 14
Cover fastening: screwed
Max. Conductor cross-section: 25 mm²
Weatherproof: yes
Insertion from the rear: yes
For Ex-Zone Gas: without
Type of housing feedthrough: Pre-knocked
For Ex zone dust: without
Cover design: without
Protection class (NEMA): other
Brief description: Junction box, Type of protection IP66/IP67/IP69, max. 25², IK09, Protection class II, Ui 690V AC, Ui 690V DC, DLG, DNV, Halogen free

Characteristics

HABAbox Pro 250-25?/sw IP66/IP67/IP69
ManufacturerSpelsberg
HAN42502001
GTIN4013902663545
VersionJunction box
Cover designWithout
Rated insulation voltage Ui690V
Width252 mm
Operating temperature-35 - 80 °C
ColorBlack
ShapeRectangular
Functional preservationWithout
Weight138,58
Weight unit kg
Halogen freeYes
Short descriptionJunction box, Type of protection IP66/IP67/IP69, max. 25², IK09, Protection class II, Ui 690V AC, Ui 690V DC, DLG, DNV, Halogen free
Length202 mm
Mounting typeWall/ceiling mounting
SurfaceUntreated
IP protection)IP66/IP67/IP69
Protection class (NEMA)Other
Depth120 mm
MaterialPlastic
