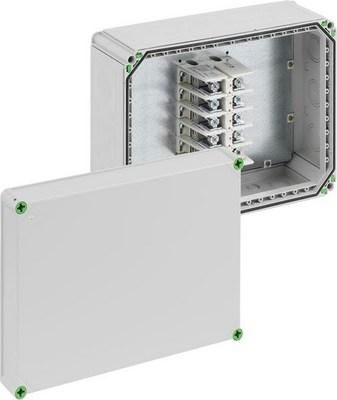

Spelsberg 49048601 Abox-i 1500-150/5 junction box

In stock

SKU: 761306

Price on request

€547.39

€0

Overview

Junction box, with protection class IP65, nominal cross-section 150mm², Ui=690V AC, deflection membranes, M16/M20/M25/M32/M40/M50, (24 on the side), internal fastening points, for installations in industrial environments and protected outdoor areas, grey, with special screw terminal for conductor entry from above, 5-pole-150² (16 to 150mm², CU/AL)Dimensions: 440 x 320 x 179mm

Property	Value
Width:	440 mm
Length:	320 mm
Depth:	179 mm
Color:	gray
Protection class (IP):	IP65
Number of entries:	36
Halogen-free:	yes
Mounting type:	Wall/ceiling mounting
Material:	Plastic
Cover fastening:	screwed
Sealable:	yes
Can be arranged in rows:	no
Shape:	rectangular
Max. Conductor cross-section:	150 mm²
Type of housing feedthrough:	Pre-punched
For Ex-Zone Gas:	without
Functional integrity:	without
Explosion-tested version:	no
Potting compound supplied:	no
Potable:	yes
For Ex-Zone Dust:	without
Installation under water:	no
Transparent cover:	no
Installation in the ground:	no
Surface:	untreated
With shielding:	no
Rated insulation voltage Ui:	690 V
Introduction from the rear:	no
Weatherproof:	yes
Cover design:	other
Operating temperature:	-35 to 80 °C
