Spelsberg 49990301 Abox-i m 025 AB-L/sw junction box

In stock

SKU: 761698

Price on request

€8.50

€0

Overview

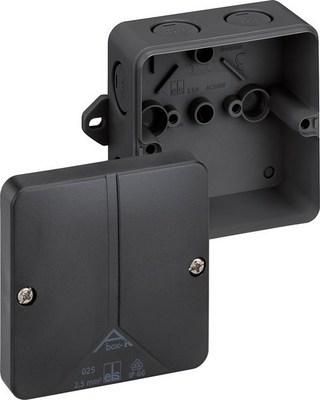

Junction box, with protection class IP66, nominal cross-section 2.5mm², Ui=690V AC, certified according to (DIN EN 60670-1/-22 (VDE 0606-1/-22)), DLG (ammonia resistance), DNV (class: ships & offshore facilities), deflection membranes, M20, (1 rear, 7 side), external fastening points, for installations in industrial environments and protected outdoor areas, black, without terminalsDimensions: 82 x 82 x 52mmIncluded accessories: 4 double membrane nozzles IP66 M20 sealing range 7-12mm

Property	Value
Width:	82 mm
Length:	82 mm
Depth:	52 mm
Color:	black
Protection class (IP):	IP65
Number of entries:	8
Halogen-free:	yes
Mounting type:	Wall/ceiling mounting
Material:	Plastic
Cover fastening:	screwed
Sealable:	yes
Can be arranged in rows:	no
Shape:	rectangular
Max. Conductor cross-section:	2.5 mm²
Type of housing feedthrough:	Pre-punched
For Ex-Zone Gas:	without
Functional integrity:	without
Explosion-tested version:	no
Potting compound supplied:	no
Potable:	yes
For Ex-Zone Dust:	without
Installation under water:	no
Transparent cover:	no
Installation in the ground:	no
Surface:	untreated
With shielding:	no
Rated insulation voltage Ui:	690 V
Introduction from the rear:	yes
Weatherproof:	yes
Cover design:	other
Operating temperature:	-35 to 80 °C
