Spelsberg 72841201 STV 512-K socket combination

In stock
SKU: 761387
€225.65
Into a basketIn the basketGo

Overview

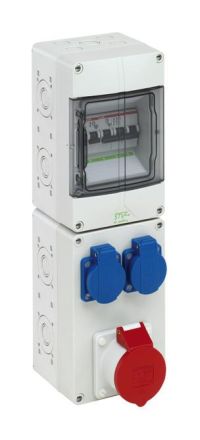

Socket combination, with protection class IP44, ready for connection, according to EN 61439-3, high mechanical load capacity, temperature-resistant, combinableCable entries:Top: Pre-knockout 4 x M20, 1 x M20/25Bottom: Pre-knockout 4 x M20, 1 x M20/25Left: Pre-knockout 4 x M20/25Right: Pre-knockout 4 x M20/25Rear: Pre-knockout 2 x M20, equipped with:1 x circuit breaker B16A, 1-pole1 x circuit breaker C16A, 3-pole2 x SCHUKO(R) socket (front), 230V1 x CEE socket (front), 16A, 400VDimensions: 125 x 400 x 122mmIncluded accessories: Mounting sockets: 2x M25, 2x M32, sealing plugs, cover and labeling strips

Property Value
CEE socket - 16 A: 1x16A5p400V
CEE socket - 32 A: without
CEE socket - 63 A: without
CEE socket - 125A: without
Number of SCHUKO sockets: 2
Width: 125 mm
Height: 400 mm
Depth: 122 mm
Protection: LS switch
FI circuit breaker: without
Feed/connection option: 1 line (spur line)
Handling: Wall mounting
Housing material: Plastic
Protection class (IP): IP44
Military version: no
Number of circuit breakers: 3
Color: gray

Characteristics

Number of SCHUKO sockets2
HABSTV 512-K socket combination
ManufacturerSpelsberg
HAN72841201
GTIN4013902934546
Width125 mm
ColorGray
Height400 mm
Military versionNo
IP protection)IP44
Depth122 mm
Housing materialPlastic
