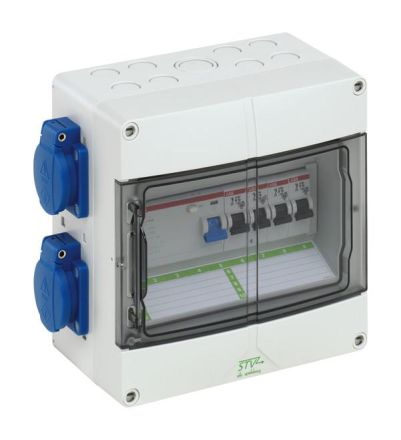

Spelsberg 72940401 STV 904-K socket combination

In stock
SKU: 761388
€298.89
Into a basketIn the basketGo

Overview

Socket combination, with protection class IP44, ready for connection, according to EN 61439-3, high mechanical load capacity, temperature-resistant, combinableCable entries:Top: Pre-knockout 8 x M20, 1 x M25/32Bottom: Pre-knockout 8 x M20, 1 x M25/32Rear: Pre-knockout 2 x M20/25, available division units: 8equipped with:4 x circuit breaker B16A, 1-pole4 x SCHUKO(R) socket (side), 230V1 x residual current device (RCCB), 25/0, 03A, 4-pole, Type AAmeans: 200 x 200 x 122mmIncluded accessories: Mounting bracket: 2x M25, 2x M32, sealing plug, Cover and labeling strips

Property Value
CEE socket - 16 A: without
CEE socket - 32 A: without
CEE socket - 63 A: without
CEE socket - 125A: without
Number of SCHUKO sockets: 4
Width: 200 mm
Height: 200 mm
Depth: 122 mm
Protection: LS switch
FI circuit breaker: FI with IFN 0.03 A (standard)
Feed/connection option: 1 line (spur line)
Handling: Wall mounting
Housing material: Plastic
Protection class (IP): IP44
Military version: no
Number of circuit breakers: 4
Color: gray

Characteristics

Number of SCHUKO sockets4
HABSTV 904-K socket combination
ManufacturerSpelsberg
HAN72940401
GTIN4013902934577
Width200 mm
ColorGray
Height200 mm
Military versionNo
IP protection)IP44
Depth122 mm
Housing materialPlastic
