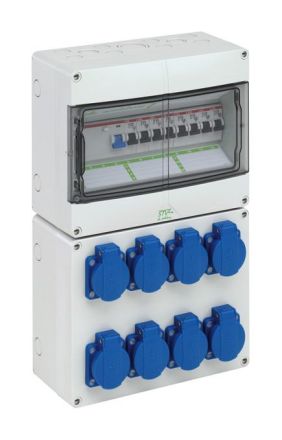

Spelsberg 73140801 STV 1208-K socket combination

In stock
SKU: 761385
€436.78
Into a basketIn the basketGo

Overview

Socket combination, with protection class IP44, ready for connection, according to EN 61439-3, high mechanical load capacity, temperature-resistant, combinableCable entries:Top: Pre-knockout 2 x M20, 2 x M20/25, 3 x M32/40Bottom: Pre-knockout 2 x M20, 2 x M20/25, 3 x M32/40Left: Pre-knockout 4 x M20Right: Pre-knockout 4 x M20Rear: Pre-knockout 4 x M20/25, equipped with:1 x residual current circuit breaker (RCCB), 40/0, 03A, 4-pole, Type A8 x circuit breaker B16A, 1-pole8 x SCHUKO(R) socket (front), 230VDimensions: 250 x 400 x 122mmIncluded accessories: Mounting brackets: 2x M25, 2x M32, sealing plugs, cover and labeling strips

Property Value
CEE socket - 16 A: without
CEE socket - 32 A: without
CEE socket - 63 A: without
CEE socket - 125A: without
Number of SCHUKO sockets: 8
Width: 250 mm
Height: 400 mm
Depth: 122 mm
Protection: LS switch
FI circuit breaker: FI with IFN 0.03 A (standard)
Supply/connection option: 2 lines (ring line/for looping through)
Handling: Wall mounting
Material of the Housing: Plastic
Protection class (IP): IP44
Military version: no
Number of circuit breakers: 8
Color: gray

Characteristics

Number of SCHUKO sockets8
HABSTV 1208-K socket combination
ManufacturerSpelsberg
HAN73140801
GTIN4013902934720
Width250 mm
ColorGray
Height400 mm
Military versionNo
IP protection)IP44
Depth122 mm
Housing materialPlastic
