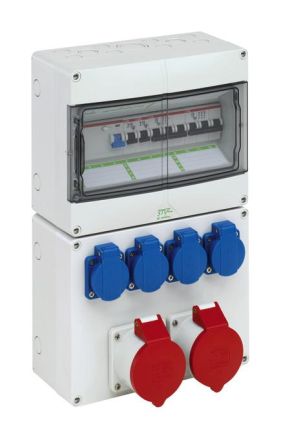

Spelsberg 73182401 STV 1224-K32 socket combination

In stock
SKU: 517754
€480.85
Into a basketIn the basketGo

Overview

Socket combination, with protection class IP44, ready for connection, according to EN 61439-3, high mechanical load capacity, temperature-insensitive, combinableCable entries:Top: Pre-knockout 2 x M20, 2 x M20/25, 3 x M32/40Bottom: Pre-knockout 2 x M20, 2 x M20/25, 3 x M32/40Left: Pre-knockout 4 x M20Right: Pre-knockout 4 x M20Rear: Pre-knockout 4 x M20/25, equipped with:1 x residual current device (RCCB), 40/0, 03A, 4-pole, Type A2 x circuit breaker B16A, 1-pole2 x circuit breaker C32A, 3-pole4 x SCHUKO(R) socket (front), 230V2 x CEE socket (front), 32A, 400V Dimensions: 250 x 400 x 122mmIncluded accessories: mounting socket: 2x M25, 2x M32, sealing plug, cover and labeling strips

Property Value
CEE socket - 16 A: without
CEE socket - 32 A: 2x32A5p400V
CEE socket - 63 A: without
CEE socket - 125A: without
Number of SCHUKO sockets: 4
Width: 250 mm
Height: 400 mm
Depth: 122 mm
Protection: LS switch
FI circuit breaker: FI with IFN 0.03 A (standard)
Feed-in/connection option: 2 lines (ring line/for looping through)
Handling: Wall mounting
Housing material: Plastic
Protection class (IP): IP44
Military version: no
Number of circuit breakers: 4
Color: gray

Characteristics

Number of SCHUKO sockets4
HABSTV1224-K32
ManufacturerSpelsberg
HAN73182401
GTIN4013902934850
Width250 mm
ColorGray
Height400 mm
Military versionNo
IP protection)IP44
Depth122 mm
Housing materialPlastic
