Spelsberg 74143301 GEOS-L 3030-18-to/sw empty housing

In stock

SKU: 1061099

Price on request

€85.57

€0

Overview

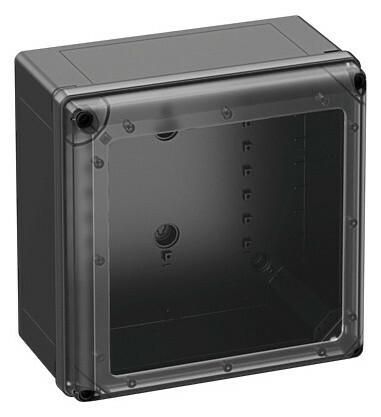

Empty enclosure - industrial quality, suitable for installation in harsh environments and in unprotected outdoor areas, box: glass fiber reinforced polycarbonate, black, similar to RAL 9005, lid: polycarbonate, with transparent lidDimensions: 300 x 300 x 180mm

RAL -Number:

Property	Value
Protection class (IP):	IP66
Impact resistance:	IK09
Width:	300 mm
Weight:	1.77
Weight unit:	KG
Color:	black
Height:	300 mm
Depth:	180 mm
9005
Wall mounting:	yes
Material quality:	other
Material:	Plastic
Suitable for outdoor installation:	yes
Surface finish:	untreated
Mast attachment:	yes
Degree of protection (NEMA):	4X
Heat loss capacity (Delta T = 20 K) according to IEC/TR 60890:	20.2 W
Max. permissible load on the housing/cabinet according to IEC 62208:	138 N
Max. permissible load of the door(s) according to IEC 62208:	30 N
With top:	yes
Transparent cover:	yes
Short description:	Empty housing, protection class IP66/IP67, impact resistance IK09, protection class II, Ui 1000V AC, Ui 1500V DC, UL, DLG, DNV, UL-EU, halogen-free

Characteristics

Wall mountingYes

HABGEOS-L 3030-18-to/sw

Manufacturer

HAN74143301

GTIN4013902679478

Surface finishUntreated

Width300 mm

Color

Suitable for outdoor installationYes

Weight1,77

Weight unit kg

Height300 mm

Short descriptionEmpty housing, protection class IP66/IP67, impact resistance IK09, protection class II, Ui 1000V AC, Ui 1500V DC, UL, DLG, DNV, UL-EU, halogen-free

RAL number9005

Impact resistanceIK09

IP protection)IP66

Protection class (NEMA)4X

Depth180 mm

MaterialPlastic

Material qualityOther
