Spelsberg 74174501 GEOS-L 4050-22-to/sw empty housing

In stock
SKU: 1061095
€163.91
Into a basketIn the basketGo

Overview

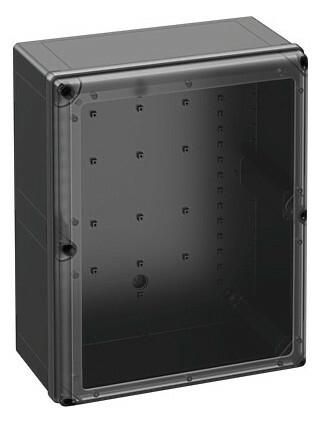

Empty enclosure - industrial quality, suitable for installation in harsh environments and in unprotected outdoor areas, box: glass fiber reinforced polycarbonate, black, similar to RAL 9005, lid: polycarbonate, with transparent doorDimensions: 400 x 500 x 226mm

RAL -Number:
Property Value
Protection class (IP): IP66
Impact resistance: IK09
Width: 400 mm
Weight: 3.71
Weight unit: KG
Color: black
Height: 500 mm
Depth: 226 mm
9005
Wall mounting: yes
Material quality: other
Material: Plastic
Suitable for outdoor installation: yes
Surface finish: untreated
Mast attachment: yes
Degree of protection (NEMA): 4X
Heat loss capacity (Delta T = 20 K) according to IEC/TR 60890: 43.3 W
Max. permissible load on the housing/cabinet according to IEC 62208: 245 N
Max. permissible load of the door(s) according to IEC 62208: 50 N
With top: yes
Transparent cover: yes
Short description: Empty housing, protection class IP66/IP67, impact resistance IK09, protection class II, Ui 1000V AC, Ui 1500V DC, UL, DLG, DNV, UL-EU, halogen-free

Characteristics

Wall mountingYes
HABGEOS-L 4050-22-to/sw
ManufacturerSpelsberg
HAN74174501
GTIN4013902679553
Surface finishUntreated
Width400 mm
ColorBlack
Suitable for outdoor installationYes
Weight3,71
Weight unit kg
Height500 mm
Short descriptionEmpty housing, protection class IP66/IP67, impact resistance IK09, protection class II, Ui 1000V AC, Ui 1500V DC, UL, DLG, DNV, UL-EU, halogen-free
RAL number9005
Impact resistanceIK09
IP protection)IP66
Protection class (NEMA)4X
Depth226 mm
MaterialPlastic
Material qualityOther
