Spelsberg 75173301 GEOS-S 3030-22-to/sw control cabinet

In stock

SKU: 1061113

Price on request

€128.40

€0

Overview

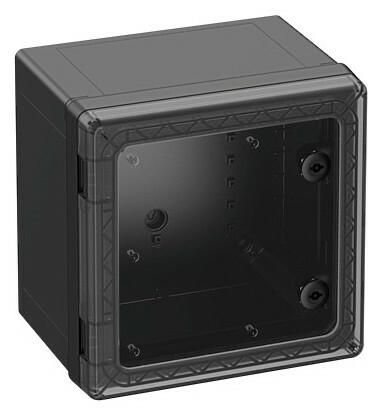

Switch cabinet industrial quality, suitable for installation in harsh environments and in unprotected outdoor areas, box and frame: glass fiber reinforced polycarbonate, black, similar to RAL 9005, door: polycarbonate.Turn latch lock with 3mm double bit insert (replaceable) according to DIN 43668, with transparent doorDimensions:300 x 300 x 226mm

Ge weight:

Property	Value
Protection class (IP):	IP66
Impact resistance:	IK09
Width:	300 mm
2.76
Weight unit:	KG
Color:	black
Height:	300 mm
Depth:	226 mm
RAL number:	9005
Number of doors:	1
Number of locks:	1
Wall mounting:	yes
Material quality:	other
Material:	plastic
Suitable for outdoor installation:	yes
Surface finish:	untreated
Mast attachment:	yes
Protection class (NEMA):	4X
Heat loss capacity (Delta T = 20 K) according to IEC/TR 60890:	24.9 W
Max. permissible load of the housing/cabinet according to IEC 62208:	138 N
Max. permissible load of the door(s) according to IEC 62208:	30 N
With top:	yes
With door:	yes
Transparent cover:	yes
Short description:	Switch cabinet, Protection class IP66/IP67, impact resistance IK09, protection class II, Ui 1000V AC, Ui 1500V DC, UL, DLG, DNV, UL-EU, halogen-free

Characteristics

Wall mountingYes

HABGEOS-S 3030-22-to/sw

Manufacturer

HAN75173301

GTIN4013902679799

Surface finishUntreated

Width300 mm

Color

Suitable for outdoor installationYes

Weight2,76

Weight unit kg

Height300 mm

Short descriptionControl cabinet, protection class IP66/IP67, impact resistance IK09, protection class II, Ui 1000V AC, Ui 1500V DC, UL, DLG, DNV, UL-EU, halogen-free

RAL number9005

Impact resistanceIK09

IP protection)IP66

Protection class (NEMA)4X

Depth226 mm

MaterialPlastic

Material qualityOther
