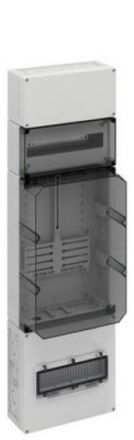

Meter distribution in multiple box design according to DIN EN 61439-2/-3, sealable as standard, for surface mounting in unmetered areas, device installation surfaces according to DIN 43870-1, meter connection cables 5-pole. Use after individual approval by the responsible network operator, with sealing plug, with enclosed ventilation plugs IP44 to reduce condensation, with insulating plug, Upper connection compartment, 150mm, equipped with 35mm standard rail to accommodate the main line branch terminal HA 25-53 (accessory), Space for additional applications, 150mm, 12TE, equipped with 35mm standard rail to accommodate additional equipment of the network operator, meter operator or meter service provider, with sealable contact protection cover and transparent cover, Meter field, 450mm, with transparent cover, for 1 meter with three-point fastening, with mounted meter cross for three-phase meters and meter fastening screws, fastening dimensions according to DIN 43870-2, Lower connection compartment, 300mm, sealable as standard, with 35mm standard rail for main circuit breaker, with PE/N double terminals, with hinged window 12TE for Layperson operation of the main circuit breakers and additional space for surge protection devices, cable entry through cable gland (IP65, accessory) or stepped nipple M40 (IP55, enclosed)Dimensions: 300 x 1050 x 210mm
| Property | Value |
| Height: | 1050 mm |
| Width: | 300 mm |
| Depth: | 210 mm |
| Protection class (IP): | IP65 |
| With hinged lid: | yes |
| Mounting type: | Structure |
| With mounting rail: | yes |
| Material: | Plastic |
