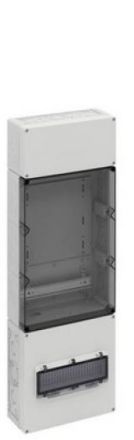

Meter distribution in multiple box design according to DIN EN 61439-2/-3, sealable as standard, for surface mounting in unmetered areas, device installation surfaces according to DIN 43870-1, meter connection cables 5-pole. Use after individual approval by the responsible network operator, with sealing plug, with insulating plug, with enclosed ventilation plug IP44 to reduce condensation, upper connection compartment, 150mm, equipped with 35mm standard rail to accommodate the main line branch terminal HA 25-53 (accessory), transformer field 450mm, with mounting plate made of insulating material, 240 x 240 x 4mm, for utility transformers, with 35mm standard rail to accommodate the transformer terminals, with cable set 5-pole H07V-K 16mm², lower connection compartment, 300mm, sealable as standard, with 35mm standard rail for main circuit breaker, with PE/N double terminals, with hinged window 12TE for layperson operation of the main circuit breaker and additional space for surge protection devices, cable entry through cable gland (IP65, accessory) or stepped nipple M40 (IP55, included)Dimensions: 300 x 900 x 132mm
| Property | Value |
| Height: | 900 mm |
| Width: | 300 mm |
| Depth: | 132 mm |
| Protection class (IP): | IP65 |
| With hinged lid: | yes |
| Mounting type: | Structure |
| With Support rail: | yes |
| Material: | Plastic |
