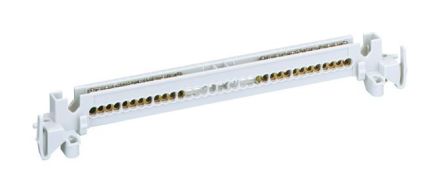

Spelsberg 79021101 AK 12 PEN-S clamping rail

In stock

SKU: 761191

Price on request

€10.27

€0

Overview

PE/N terminal rail, for installation in AK/AKi compact small distributors as additional terminals or as a replacement., PE and N terminal with 2 terminal points 16mm² and 10 terminal points 6mm²Dimensions: 242 x 26 x 13mm

Property	Value
Number of poles:	2
Color:	gray
Rated voltage:	450 V
Material of the insulating body:	Thermoplastic
Rated current In:	76 A
Operating temperature:	40 °C
Connectable conductor cross-section, single-wire:	1.5 to 16 mm²
Connectable conductor cross-section, multi-wire:	1.5 to 16 mm²
Mounting type:	other
Design of electrical connection 1:	screw connection
Design of electrical connection 2:	screw connection
Number of terminal points per pole:	12
Flammability class of the insulating material according to UL 94:	V2
End plate required:	no
Explosion-tested version 'Ex e':	no
Transparent:	no
