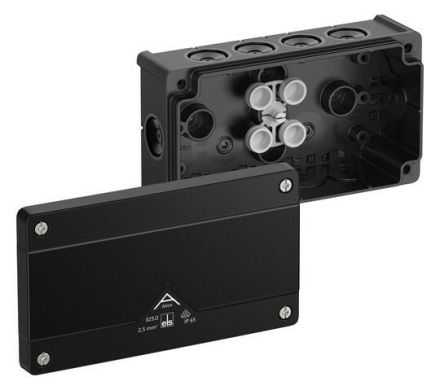

Spelsberg 80200201 Abox 025/2-L/sw IP66 junction box

In stock

SKU: 1061003

Price on request

€5.81

€0

Overview

Junction box, with protection class IP66, nominal cross-section 2.5mm², certified by (DIN EN 60670-1/-22 (VDE 0606-1/-22)), DLG (ammonia resistance), self-sealing, soft entry membranes, M20, sealing range 4-16mm, (2 at the back, 10 at the side), internal fastening points, for standard installations indoors and protected outdoors, black, Ui=1000 V AC, without terminalsDimensions:152 x 87 x 52mm

Property	Value
Protection class (IP):	IP66
Length:	87 mm
Width:	152 mm
Weight:	163.07
Weight unit:	KG
Mounting type:	Wall/ceiling mounting
Color:	black
Version:	Connection box
Halogen-free:	yes
Depth:	52 mm
Shape:	rectangular
Surface:	untreated
Equipment:	without
Rated insulation voltage Ui:	1000 V
Sealable:	yes
Functional integrity:	without
Operating temperature:	-25 - 55 °C
Material:	Plastic
Number of entries:	12
Cover fastening:	screwed
Max. Conductor cross-section:	2.5 mm²
Weatherproof:	yes
Introduction from the rear:	yes
For Ex zone gas:	without
Type of housing feedthrough:	Sealing membrane
For Ex zone dust:	without
Cover design:	without
Protection class (NEMA):	other
Brief description:	Junction box, Type of protection IP66, max. 2.5², Impact strength IK07, Protection class II, Ui 690V AC, Ui 1000V DC, DLG, Halogen free

Characteristics

HABAbox 025/2-L/sw IP66

Manufacturer

HAN80200201

GTIN4013902663361

VersionJunction box

Cover designWithout

Rated insulation voltage Ui1000V

Width152 mm

Operating temperature-25 - 55 °C

Color

ShapeRectangular

Functional preservationWithout

Weight163,07

Weight unit kg

Halogen freeYes

Short descriptionJunction box, Type of protection IP66, max. 2.5², Impact strength IK07, Protection class II, Ui 690V AC, Ui 1000V DC, DLG, Halogen free

Length87 mm

Mounting typeWall/ceiling mounting

SurfaceUntreated

IP protection)IP66

Protection class (NEMA)Other

Depth52 mm

MaterialPlastic
