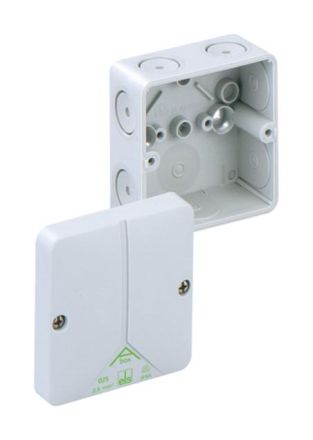

Spelsberg 80290701 Abox 025-L junction box

In stock

SKU: 517705

Price on request

€3.68

€0

Overview

Junction box, with protection class IP65, nominal cross-section 2.5mm², Ui=690V AC, certified according to (DIN EN 60670-1/-22 (VDE 0606-1/-22)), self-sealing, soft entry membranes, M20, sealing range 2-16mm, (1 rear, 7 side), internal fastening points, for standard indoor installations, grey, without terminalsDimensions: 80 x 80 x 52mm

Property	Value
Width:	80 mm
Length:	80 mm
Depth:	52 mm
Color:	gray
Protection class (IP):	IP65
Number of entries:	8
Halogen-free:	yes
Equipment:	without
Mounting type:	Wall/ceiling mounting
Material:	Plastic
Cover fastening:	screwed
Sealable:	yes
Can be aligned:	no
Shape:	rectangular
Max. Conductor cross-section:	2.5 mm²
Type of housing feedthrough:	Sealing membrane
For Ex zone gas:	without
Functional integrity:	without
Explosion-tested version:	no
Potting compound included:	no
Potable:	yes
For Ex-Zone dust:	without
Installation under water:	no
Transparent lid:	no
Installation in the ground:	no
Surface:	untreated
For pipe diameters:	other
With shielding:	no
Rated insulation voltage Ui:	690 V
Introduction from the rear:	yes
Weatherproof:	no
Version Lid:	other
Operating temperature:	-25 to 40 °C
