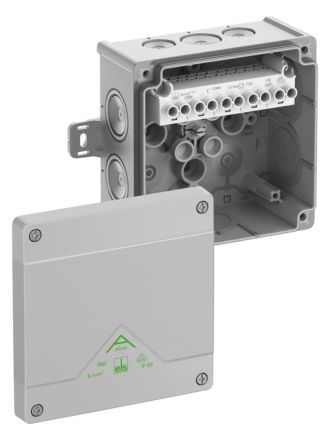

Spelsberg 80642101 Abox 060 AB-6 IP66 junction box

In stock
SKU: 1061016
€14.88
Into a basketIn the basketGo

Overview

Junction box, with protection class IP66, nominal cross-section 6mm², certified by (DIN EN 60670-1/-22 (VDE 0606-1/-22)), DLG (ammonia resistance), self-sealing, soft entry membranes, M20/M25/M32, sealing range 4-28mm, (2 at the rear, 8 at the side), external fastening points, for standard installations indoors and protected outdoors, grey, Ui=690 V AC, In=41 A, with high screw terminal, 5-pole-6mm², clampable cross-sections per pole: 4 x 1.5mm², 4 x 2.5mm², 4 x 4mm², 4 x 6mm² Cu rigid / flexible with wire end ferruleDimensions: 127 x 127 x 70mm

Property Value
Protection rating (IP): IP66
Length: 127 mm
Width: 127 mm
Weight: 167.97
Weight unit: KG
Mounting type: Wall/ceiling mounting
Color: gray
Version: Connection box
Halogen-free: yes
Depth: 70 mm
Shape: square
Surface: untreated
Equipment: Screw terminal
Rated insulation voltage Ui: 690 V
Sealable: yes
Functional integrity: without
Operating temperature: -25 - 55 °C
Material: Plastic
Number of entries: 10
Cover fastening: screwed
Max. Conductor cross-section: 6 mm²
Weatherproof: yes
Introduction from the rear: yes
For Ex zone gas: without
Type of housing feedthrough: Sealing membrane
For Ex zone dust: without
Cover design: without
Protection class (NEMA): other
Brief description: Junction box, Type of protection IP66, max. 6², Impact strength IK07, Protection class II, Ui 690V AC, Ui 690V DC, DLG, Halogen free

Characteristics

HABAbox 060 AB-6? IP66
ManufacturerSpelsberg
HAN80642101
GTIN4013902660810
VersionJunction box
Cover designWithout
Rated insulation voltage Ui690V
Width127 mm
Operating temperature-25 - 55 °C
ColorGray
ShapeSquare
Functional preservationWithout
Weight167,97
Weight unit kg
Halogen freeYes
Short descriptionJunction box, Type of protection IP66, max. 6², Impact strength IK07, Protection class II, Ui 690V AC, Ui 690V DC, DLG, Halogen free
Length127 mm
Mounting typeWall/ceiling mounting
SurfaceUntreated
IP protection)IP66
Protection class (NEMA)Other
Depth70 mm
MaterialPlastic
