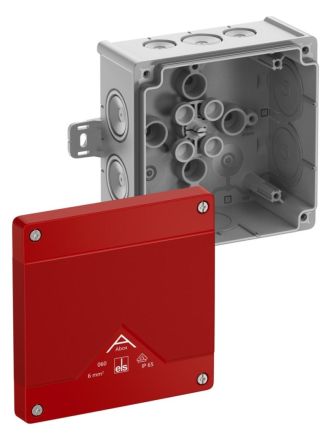

Spelsberg 80670101 Abox 060 AB-L/SB IP66 junction box

In stock

SKU: 1061017

Price on request

€12.56

€0

Overview

Junction box, with protection class IP66, nominal cross-section 6mm², certified by (DIN EN 60670-1/-22 (VDE 0606-1/-22)), DLG (ammonia resistance), self-sealing, soft entry membranes, M20/M25/M32, sealing range 4-28mm, (2 at the rear, 8 at the side), external fastening points, for standard installations indoors and protected outdoors, grey, Ui=1000 V AC, with red cover, without terminals, for marking circuits of the emergency lightingDimensions: 127 x 127 x 70mm

Property	Value
Protection rating (IP):	IP66
Length:	127 mm
Width:	127 mm
Weight:	132.93
Weight unit:	KG
Mounting type:	Wall/ceiling mounting
Color:	red
Design:	Connection box
Halogen-free:	yes
Depth:	70 mm
Shape:	square
Surface:	untreated
Equipment:	without
Rated insulation voltage Ui:	1000 V
Sealable:	yes
Functional integrity:	without
Operating temperature:	-25 - 55 °C
Material:	Plastic
Number of entries:	10
Cover fastening:	screwed
Max. Conductor cross-section:	6 mm²
Weatherproof:	yes
Introduction from the rear:	yes
For Ex zone gas:	without
Type of housing feedthrough:	Sealing membrane
For Ex zone dust:	without
Cover design:	without
Protection class (NEMA):	other
Brief description:	Junction box, Type of protection IP66, max. 6², Impact strength IK07, Protection class II, Ui 690V AC, Ui 1000V DC, DLG, Halogen free

Characteristics

HABAbox 060 AB-L/SB IP66

Manufacturer

HAN80670101

GTIN4013902660698

VersionJunction box

Cover designWithout

Rated insulation voltage Ui1000V

Width127 mm

Operating temperature-25 - 55 °C

Color

ShapeSquare

Functional preservationWithout

Weight132,93

Weight unit kg

Halogen freeYes

Short descriptionJunction box, Type of protection IP66, max. 6², Impact strength IK07, Protection class II, Ui 690V AC, Ui 1000V DC, DLG, Halogen free

Length127 mm

Mounting typeWall/ceiling mounting

SurfaceUntreated

IP protection)IP66

Protection class (NEMA)Other

Depth70 mm

MaterialPlastic
