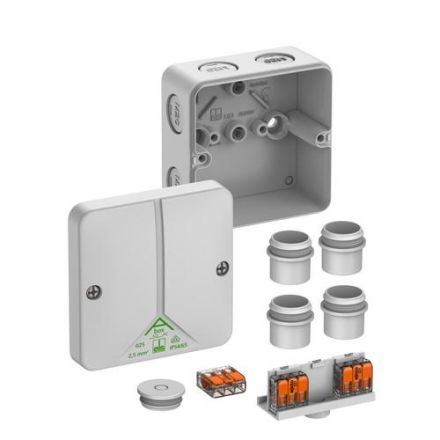

Spelsberg 80780701 Abox SLK-2.5 qmm junction box

In stock

SKU: 837885

Price on request

€5.60

€0

Overview

Junction box, with protection class IP54/IP65, nominal cross-section 2.5mm², Ui=450V AC, certified according to (DIN EN 60670-1/-22 (VDE 0606-1/-22)), deflection membranes, M20, (1 rear, 7 side), internal fastening points, with screwless terminals for standard indoor installations, grey, with 3 floor-fixed, screwless 3-conductor terminals Wago 221-413-2.5mm², clampable cross-sections per pole: 3 x 0.2 to 2.5mm² rigid Cu and 3 x 0.14 to 2.5mm² flexible CuDimensions: 82 x 82 x 52mmIncluded accessories: 4 mounting sockets IP54 M20 sealing range 8-13, 5mm, 1 sealing plug M20

Property	Value
Width:	82 mm
Length:	82 mm
Depth:	52 mm
Color:	grey
Protection class (IP):	IP65
Number of entries:	8
Halogen-free:	yes
Mounting type:	Wall/ceiling mounting
Material:	Plastic
Cover fastening:	screwed
Sealable:	yes
Can be arranged in rows:	no
Shape:	rectangular
Max. Conductor cross-section:	2.5 mm²
Type of housing feedthrough:	Pre-punched
For Ex-Zone Gas:	without
Functional integrity:	without
Explosion-tested version:	no
Potting compound supplied:	no
Potable:	yes
For Ex-Zone Dust:	without
Installation under water:	no
Transparent cover:	no
Installation in the ground:	no
Surface:	untreated
With shielding:	no
Rated insulation voltage Ui:	450 V
Introduction from the rear:	yes
Weatherproof:	no
Cover design:	other
Operating temperature:	-25 to 40 °C
