Spelsberg 86248301 WKE 403 SL cable junction box

In stock

SKU: 837894

Price on request

€230.62

€0

Overview

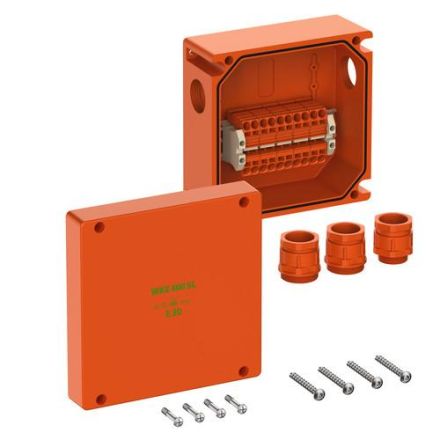

Cable junction box, with protection class IP66, Ui=450V AC, certified according to (DIN EN 60670-1/-22 (VDE 0606-1/-22)), internal thread, M32/M40, (3 on the side), external fastening points, with electrical functional integrity E30 according to DIN 4102 Part 12, with screwless Wago TopJobS terminal blocks, housing made of halogen-free special duroplast, orange, junction box 5-pole, clamping capacity per pole 4 x 0.5-16mm²Dimensions: 200 x 200 x 110mmIncluded accessories: 2 cable glands M40, sealing range 17-27mm, 1 cable gland M32, sealing range 17-26mm, dowel set ø 6mm

Property	Value
Width:	200 mm
Length:	200 mm
Depth:	110 mm
Color:	orange
Protection class (IP):	IP66
Number of entries:	3
Halogen-free:	yes
Mounting type:	Wall/ceiling mounting
Material:	plastic
Cover fastening:	screwed
Sealable:	no
Can be arranged in rows:	no
Shape:	square
Max. Conductor cross-section:	16 mm²
Type of housing feedthrough:	Thread
For Ex-Zone Gas:	without
Functional integrity:	E 30
Explosion-tested version:	no
Potting compound included:	no
Potable:	no
For Ex-Zone Dust:	without
Installation under water:	no
Transparent cover:	no
Installation in the ground:	no
Surface:	untreated
With shielding:	no
Rated insulation voltage Ui:	450 V
Introduction from the rear:	no
Weatherproof:	yes
Cover design:	other
Operating temperature:	-25 to 40 °C
