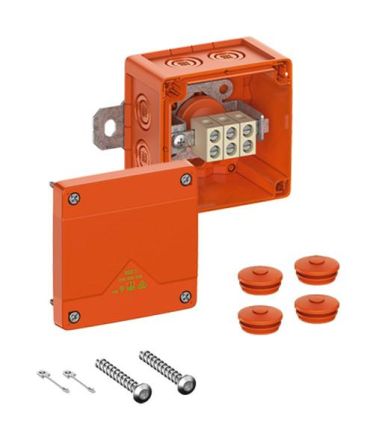

Cable junction and connection box with IP66 validated according to EN 60670 and IEC 62208 with electrical functional integrity E30 - E90 according to DIN 4102 Part 12. Halogen-free housing made of special thermoplastic, terminals made of high-temperature-resistant special ceramic, quick assembly using external fastening tabs, terminal holder can be freely positioned, protection class IP66, functional integrity E30-E90, nominal cross-section 4, protection class II, rated insulation voltage Ui 450V, test mark UL-EU, halogen-free, 100 x 100 x 70, junction box 3-pole 1 - 6 mm, junction box 3-pole 1 - 4 mm, number of clampable conductors per pole: 10 x 1 / 8 x 1.5 / 6 x 2.5 / 4 x 4 / 2 x 6, included accessories: wall + ceiling Mounting set D6, 4 double membrane nozzles IP66 M25 sealing range 9 - 16 mm
