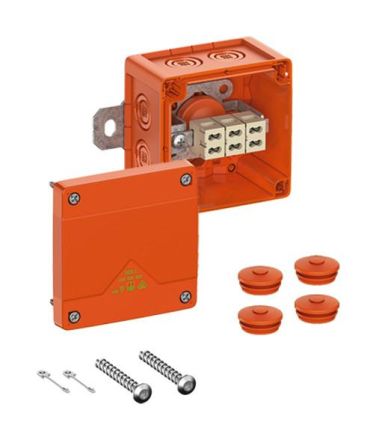

Cable junction and connection box with IP66 validated according to EN 60670 and IEC 62208 with electrical functional integrity E30 - E90 according to DIN 4102 Part 12. Halogen-free housing made of special thermoplastic, terminals made of high-temperature-resistant special ceramic, quick assembly using external fastening lugs, terminal holder can be freely positioned, protection class IP66, functional integrity E30-E90, nominal cross-section 4, protection class II, rated insulation voltage Ui 450V, test mark UL-EU, halogen-free, 100 x 100 x 70, junction box 3-pole 0.5 - 4 mm, junction box 3-pole 0.5 - 4 mm, number of clampable conductors per pole: 16 x 0.5 / 8x 0.75 / 12 x 1 / 12 x 1.5 / 4 x 2.5 / 4 x 4, Accessories included: cover captive device, screw anchor, 4 double membrane nozzles IP66 M25 sealing range 9 - 16 mm
