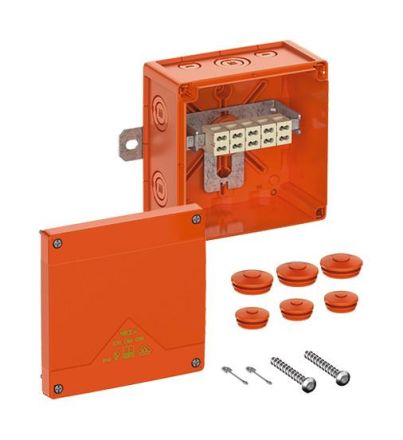

Cable junction and connection box with IP66 validated according to EN 60670 and IEC 62208 with electrical functional integrity E30 - E90 according to DIN 4102 Part 12. Halogen-free housing made of special thermoplastic, terminals made of high-temperature-resistant special ceramic, quick assembly using external fastening lugs, terminal holder freely positionable, protection class IP66, functional integrity E30-E90, nominal cross-section 6, protection class II, rated insulation voltage Ui 450V, test mark UL-EU, halogen-free, 150 x 150 x 85, junction box 5-pin 0.5 - 6 mm, junction box 5-pin 0.5 - 6 mm, number of clampable conductors per pole: 16 x 0.5 / 8x 0.75 / 12 x 1 / 12 x 1.5 / 4 x 2.5 / 4 x 4 / 4 x 6, included accessories: cover loss protection, screw anchor, 3 double membrane nozzles IP66 M25 sealing range 9 - 16 mm, 3 double membrane nozzles IP66 M32 sealing range 14 - 21 mm
