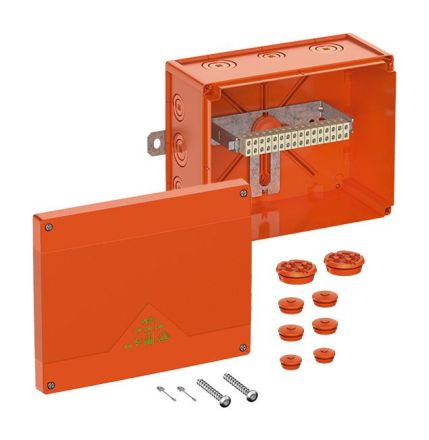

Cable junction and connection box with IP66 validated according to EN 60670 and IEC 62208 with electrical functional integrity E30 - E90 according to DIN 4102 Part 12. Halogen-free housing made of special thermoplastic, terminals made of high-temperature-resistant special ceramic, quick assembly using external fastening lugs, terminal holder can be freely positioned, protection class IP66, functional integrity E30-E90, nominal cross-section 1.5, protection class II, rated insulation voltage Ui 450V, test mark UL-EU, halogen-free, 250 x 200 x 120, junction box 16-pin 0.5 - 2.5 mm, junction box 16-pin 0.5 - 1.5 mm, number of clampable conductors per pole: 8 x 0.5 / 4 x 0.75 / 6 x 1 / 6 x 1.5 / 2 x 2.5, included accessories: cover captive device, screw anchor, 2 double membrane nozzles IP66 M20 sealing range 7 - 12 mm, 4 double membrane nozzles IP66 M25 sealing range 9 - 16 mm, 2 double membrane nozzles IP66 M40/4 sealing range 4 x 6 - 9 mm
