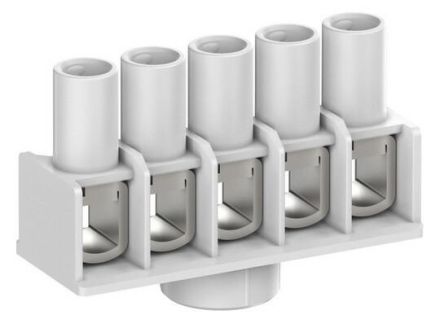

Spelsberg 89640401 Abox 025/040 KLS-2,5 /4 according to DIN EN 609 terminal block

In stock

SKU: 1061031

Price on request

€1.79

€0

Overview

Connection terminal according to DIN EN 60998 (VDE 0613), Ui=690V. For installation in junction boxes Abox / Abox Pro from 2024., screw terminal for Abox / Abox Pro 025 and Abox / Abox Pro 040, 5-pole-4mm², In = 41 A, clampable cross-sections per pole: 4 x 1.5mm², 4 x 2.5mm², 4 x 4mm², Cu rigidDimensions: 15 x 46 x 25mm

Height:

Property	Value
Width:	46 mm
Pin number:	5
Weight:	412.74
Weight unit:	KG
Mounting type:	Direct mounting
Color:	gray
Halogen-free:	yes
25 mm
Depth:	15 mm
Rated voltage:	690 V
Operating temperature:	85 °C
Number of terminal points per pole:	1
Flammability class of the insulating material according to UL 94:	V2
Design of electrical connection 1:	Screw connection
Connectable conductor cross-section, single-wire:	1.5 - 4 mm²
Material of the insulating body:	Thermoplastic
Rated current In:	41 A
Short description:	Terminal block
