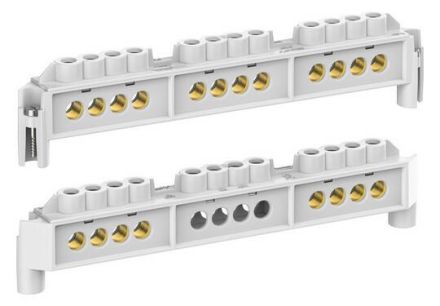

Spelsberg 89643501 Abox 250/350 KLS-25 /35 according to DIN EN 609 terminal block

In stock

SKU: 1061030

Price on request

€33.28

€0

Overview

Connection terminal according to DIN EN 60998 (VDE 0613), Ui=690V. For installation in junction boxes Abox / Abox Pro from 2024., high-level screw terminal for Abox / Abox Pro 250/350, 5-pole-35mm², In = 125 A, clampable cross-sections per pole: 12 x 10mm², 8 x 16mm², 4 x 25mm², 4 x 35mm² Cu rigid / flexible with wire end ferruleDimensions:21 x 205 x 48mm

Property	Value
Width:	205 mm
Polzahl:	5
Gewicht:	659,58
Gewichtseinheit:	KG
Montageart:	Direktmontage
Color:	gray
Halogen-free:	yes
Height:	48 mm
Depth:	21 mm
Rated voltage:	690 V
Operating temperature:	85 °C
Number of terminal points per pole:	4
Flammability class of the insulating material according to UL 94:	V2
Design of electrical connection 1:	Screw connection
Connectable conductor cross-section, single-wire:	10 - 35 mm²
Connectable conductor cross-section, fine-wire with wire end ferrule:	10 - 35 mm²
Material of the insulating body:	Thermoplastic
Rated current In:	125 A
Short description:	Terminal block
