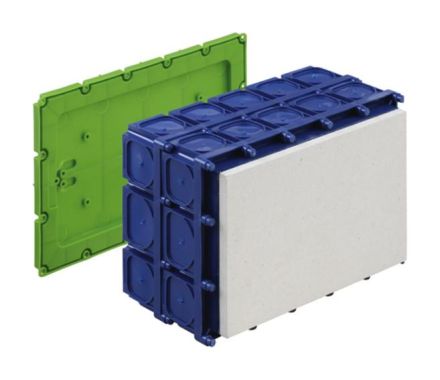

Spelsberg 98000501 K4-H EK installation housing

In stock
SKU: 716235
€42.48
Into a basketIn the basketGo

Overview

Universal installation housing, for installation of NV/HV/LED lights and loudspeakers, prepared for the WK terminals 2.5-25mm², suitable for a 40-pin telephone connection strip, as a telephone through-box in accordance with DIN 47614-615, or as a sub-distribution in combination with the UP 015 (1-row, 15 TE), with protection class IP30, rated insulation voltage: 400V AC, halogen-free, without Fermacell(R) plate, lamp power max. 50W / LED 40W, magnet or nail fastening, membrane for perforation, sealing range M16-M50, support beam capableDimensions: 311 x 202 x 158mm

Property Value
With Screws: no
Depth: 158 mm
Length: 202 mm
Width: 311 mm
Material: Plastic
Color: other
Sealable: no
Halogen-free: yes
Protection class (IP): IP30
Shape: rectangular
Mounting type: Concrete construction
Number of entries: 32
Design: other
Construction: other
With nail tabs: no
Windproof: yes
Suitable for cable diameters: 1 to 47.5 mm
Introduction from the rear: no
Can be coupled: no
Housing feedthrough through sealing membrane: no
Cover fastening: snaps on
Functional integrity: without
Surface: untreated
Fastening of the devices: screws
For pipe diameter: 32 mm
Tube locking: yes
Clamp fixed in position: no
Equipment: without
Light hook fastening: no
Socket: without
With shielding: no
Housing feed-through through knockout opening: no
With rotating ring: no
Special application: without
Housing feedthrough through pipe socket: no
Housing feedthrough through stepped membrane: no
Pipe locking optional: no
Cover design: Blind cover
Transparent cover: no

Characteristics

Suitable for cable diameter1 to 47.5mm
HABK4-H EK
ManufacturerSpelsberg
HAN98000501
GTIN4013902932344
VersionOther
Cover designBlind cover
DesignOther
Width311 mm
ColorOther
ShapeRectangular
Functional preservationWithout
Halogen freeYes
Length202 mm
Mounting typeConcrete construction
SurfaceUntreated
IP protection)IP30
Depth158 mm
MaterialPlastic
