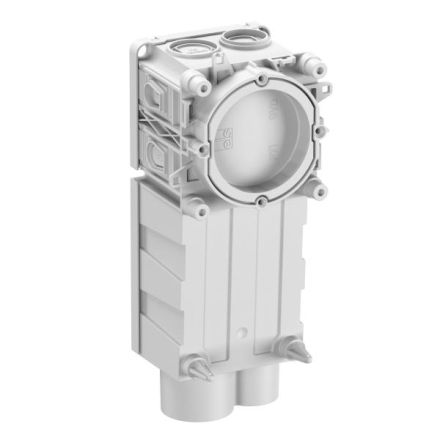

Spelsberg 98406701 P 71 DATA junction box

In stock

SKU: 915228

Price on request

€8.29

€0

Overview

98406701 P 71 DATA junction box Manufacturer article number: 98406701, Manufacturer article name: P 71 DATA

Property	Value
With screws:	no
Depth:	68 mm
Length:	181 mm
Width:	71 mm
Material:	Plastic
Color:	gray
Sealable:	no
Halogen-free:	yes
Protection class (IP):	IP30
Shape:	rectangular
Mounting type:	Concrete construction
Number of entries:	6
Design:	Single
Design:	Device junction box/box
With Nail tabs:	no
Windproof:	no
Suitable for cable diameters:	1 to 20 mm
Insertion from the rear:	yes
Can be coupled:	yes
Housing feed-through through sealing membrane:	no
Cover fastening:	hinged
Functional integrity:	without
For number Device inserts:	1
Inner depth:	64 mm
Surface:	untreated
Fastening of devices:	screwing or spreading
For pipe diameter:	32 mm
Pipe locking:	yes
Clamp fixed in position:	no
Equipment:	without
Light hook fastening:	no
Socket:	Pipe socket
With shielding:	no
Housing feed-through through knockout opening:	yes
With rotating ring:	no
Housing feed-through through pipe socket:	no
Housing feed-through through stepped membrane:	no
Tube lock optional:	no
Cover design:	Blind cover
Transparent cover:	no
