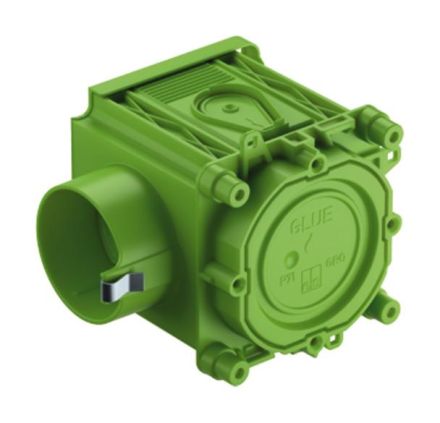

Spelsberg 98477501 P 71 GRO-K large pipe box

In stock
SKU: 760860
€2.16
Into a basketIn the basketGo

Overview

Large pipe box, especially for horizontal factory production, 1-piece, diameter 60mm Ø, 4 screw domes with screw spacing 60mm, combinable, also suitable for counter formwork, can be combined at a standard spacing of 71mm, with protection class IP30, rated insulation voltage: 400V AC, certified according to (DIN EN 60670-1/-22 (VDE 0606-1/-22)), halogen-free, with enlarged connection space, adhesive fastening, integrated pipe adapters and additional pipe adapters with easy-cut membrane, sealing range M32-M40Dimensions: 71 x 71 x 76.5mm

Property Value
With screws: no
Depth: 76.5 mm
Length: 71 mm
Width: 71 mm
Material: Plastic
Color: green
Sealable: no
Halogen-free: yes
Protection class (IP): IP30
Shape: square
Mounting type: Concrete construction
Number of entries: 4
Design: Single
Design: Device box
With nail tabs: no
Windproof: no
Suitable for cable diameters: 1 to 32 mm
Entry from the rear: yes
Can be coupled: yes
Housing feedthrough through sealing membrane: no
Cover fastening: hinged
Functional integrity: without
For number of device inserts: 1
Inner depth: 72.9 mm
Surface: untreated
Fastening of the devices: screws
For pipe diameter: 25 mm
Pipe locking: yes
Clamp fixed in position: no
Equipment: without
Light hook fastening: no
Socket: Pipe socket
With shielding: no
Housing feedthrough through knockout opening: yes
With rotating ring: no
Special application: without
Housing feedthrough through pipe socket: no
Housing feedthrough through stepped membrane: no
Pipe locking optional: no
Cover design: Blind cover
Transparent cover: no

Characteristics

Suitable for cable diameter1 to 32mm
HABP 71 GRO-K large pipe box
ManufacturerSpelsberg
HAN98477501
GTIN4013902597536
VersionSingles
Cover designBlind cover
DesignDevice socket
Width71 mm
ColorGreen
ShapeSquare
Functional preservationWithout
Halogen freeYes
Internal depth72.9 mm
Length71 mm
Mounting typeConcrete construction
SurfaceUntreated
IP protection)IP30
Depth76.5 mm
MaterialPlastic
