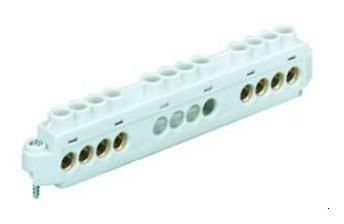

Spelsberg Abox 160 KLS-16 clamping block, 84001601

In stock

SKU: 481681

Price on request

€13.17

€0

Overview

Connection terminal according to DIN EN 60998 (VDE 0613), Ui=690V, 5-pole-16mm²Dimensions: 170 x 120 x 20mm

Property	Value
Number of poles:	5
Color:	gray
Rated voltage:	690 V
Material of the insulating body:	Thermoplastic
Rated current In:	101 A
Operating temperature:	85 °C
Connectable conductor cross-section, single-wire:	4 to 25 mm²
Connectable conductor cross-section, multi-wire:	4 to 25 mm²
Mounting type:	other
Design of electrical connection 1:	screw connection
Number of terminal points per pole:	4
Flammability class of the insulating material according to UL 94:	V2
End plate required:	no
Explosion-tested version 'Ex e':	no
Transparent:	no
