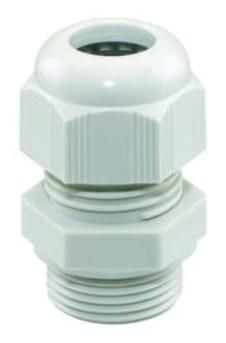

Spelsberg KVR M20-MGM cable gland, 22742001

In stock

SKU: 482183

Price on request

€2.09

€0

Overview

Cable gland, IP68, with strain relief, polyamide, M_ x 1.5mm, with lock nut, grey, sealing range 6-12mm, thread length 9mmDimensions: 26.5 x 26.5 x 36mm

Property	Value
Wrench size:	24 mm
Thread pitch:	1.5 mm
Nominal thread size metric/PG:	20
Suitable for cable diameters:	6 to 12 mm
Protection class (IP):	IP68
Operating temperature:	-25 to 100 °C
Halogen-free:	yes
Thread length:	9 mm
Thread type:	metric
Design:	straight
Material:	plastic
With strain relief:	yes
Surface:	untreated
Hexagon corner dimension:	26.5 mm
Type of seal:	Sealing ring
Impact resistant:	yes
Bending protection:	no
RAL number:	7035
Material quality:	Polyamide (PA)
Nominal thread size in inches NPT/gas pipe thread:	other
Fiberglass reinforced:	yes
With lock nut:	yes
Multiple sealing inserts:	no
Flat cable gland:	no
Dividable gland:	no
Explosion-tested version:	no
For Ex-zone gas:	without
For Ex-zone dust:	without
Snaps into opening:	no
For armored cables:	no
EMC version:	no
Shielded:	no
