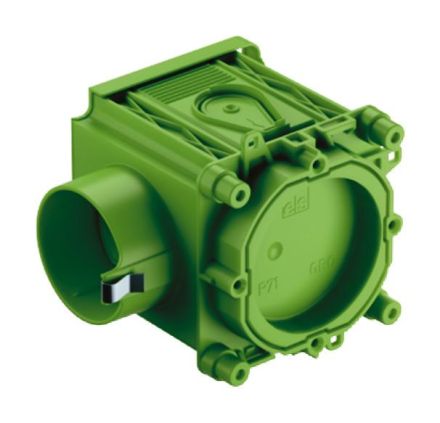

Spelsberg P 71 GRO large pipe box, 98407501

In stock

SKU: 482667

Price on request

€2.19

€0

Overview

Large pipe box, especially for horizontal factory production, 1-piece, diameter 60mm Ø, 4 screw domes with screw spacing 60mm, combinable, also suitable for counter formwork, can be combined at a standard spacing of 71mm, with protection class IP30, rated insulation voltage: 400V AC, certified according to (DIN EN 60670-1/-22 (VDE 0606-1/-22)), halogen-free, with enlarged connection space, magnetic fastening, integrated pipe adapters and additional pipe adapters with Easy-Cut membrane, sealing range M32-M40, can be used with support beamsDimensions: 71 x 71 x 76.5mm

Property	Value
With screws:	no
Depth:	76.5 mm
Length:	71 mm
Width:	71 mm
Material:	Plastic
Color:	green
Sealable:	no
Halogen-free:	yes
Protection class (IP):	IP30
Shape:	square
Mounting type:	Concrete construction
Number of entries:	4
Design:	Single
Design:	Device box
With nail tabs:	no
Windproof:	no
Suitable for cable diameters:	1 to 32 mm
Entry from the rear:	yes
Can be coupled:	yes
Housing feedthrough through sealing membrane:	no
Cover fastening:	hinged
Functional integrity:	without
For number of device inserts:	1
Inner depth:	72.9 mm
Surface:	untreated
Fastening of the devices:	screws
For pipe diameter:	25 mm
Pipe locking:	yes
Clamp fixed in position:	no
Equipment:	without
Light hook fastening:	no
Socket:	Pipe socket
With shielding:	no
Housing feedthrough through knockout opening:	yes
With rotating ring:	no
Special application:	without
Housing feedthrough through pipe socket:	no
Housing feedthrough through stepped membrane:	no
Pipe locking optional:	no
Cover design:	Blind cover
Transparent cover:	no
