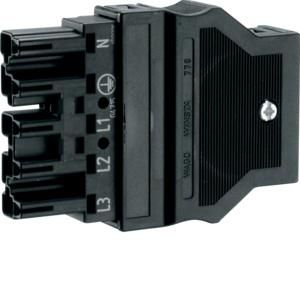

TEHALIT G4705 input socket Wago 5-pin 1.5-2.5qmm

In stock

SKU: 302767

Price on request

€7.12

€0

Overview

Wago 5-pin input socket for rigid and fine-stranded conductors 1.5-2.5mm²

Property	Value
Connection type:	Spring-loaded connection
Number of connections per pole:	2
Design:	Socket
Rated voltage:	400 V
Rated impulse voltage:	4 kV
Rated current:	32 A
Width:	54.6 mm
Contact resistance:	1 mOhm
Color of coding/contact insert:	black
Halogen-free:	yes
Height:	17 mm
Contact material:	other
Length:	76 mm
Mechanical coding:	yes
Surface treatment of the contacts:	untreated
Pole marking:	3, N, PE, 2, 1
Number of poles:	2
Protection class (IP):	IP20
Degree of pollution:	3
Material of the housing:	other
With strain relief:	yes
Connection cross-section (single-wire):	0.5 to 4 mm²
Connection cross-section (fine-stranded):	0.5 to 4 mm²
Locking type:	separate
Cable diameter:	11.5 mm
Max. continuous temperature resistance of contact part:	85 °C
Max. continuous temperature resistance of strain relief:	105 °C
