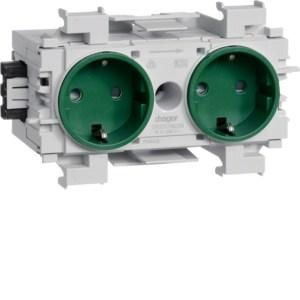

TEHALIT GS20016029 2-way socket green

In stock

SKU: 155701

Price on request

€38.51

€0

Overview

Safety sockets with increased contact protection, low space requirements, thanks to simple plug-in technology with WAGO-Winsta system, can be connected in series using a 3-pin plug-in connector system, nominal current 16 A with contact protection and reverse polarity protection, test openings accessible when plugged in. Connection directly via plug-in terminals 1.5 - 2.5 mm2 or input socket G4703

Property	Value
Version:	SCHUKO
RAL number (similar):	6029
Number of units:	2
Color:	green
Suitable for protection class (IP):	IP20
Nominal voltage:	250 V
Nominal current:	16 A
Lockable:	no
With increased contact protection:	yes
With hinged lid:	no
Mounting type:	Device installation duct
Text field/labeling area:	yes
Frequency:	50 to 60 Hz
Ejection mechanism:	no
Halogen-free:	yes
Overvoltage protection:	no
Residual current protection:	no
Special power supply:	Safety supply (green)
Twisted central insert:	no
Connection type:	Plug-in terminal
With fine fuse:	no
Mounting type:	Snap-on fastening
Material:	Plastic
Material quality:	Thermoplastic
Surface:	untreated
Surface finish:	matt
Number of modules (with modular design):	2
Device width:	120 mm
Device height:	50 mm
Device depth:	54 mm
Insulated installation:	yes
With loop-through function:	yes
With on/off switch:	no
With built-in USB power supply:	no
With function lighting:	no
With orientation lighting:	no
Impact resistance:	IK07
Transparent:	no
Protective contact:	yes
Round protective conductor contact:	no
With signal lamp:	no
Number of phases:	1
Antibacterial treatment:	no

Characteristics

Manufacturer

HANGS20016029

GTIN4012740851206

LockableNo

Connection typePlug-in terminal

Antibacterial treatmentNo

Number of Units2

Number of modules (for modular construction)2

Number of phases1

VersionSCHUKO

Surface finishFrosted

Ejection mechanismNo

Mounting typeSnap-on fastening

Color

Residual current protectionNo

Frequency50 to 60 Hz

Suitable for protection class (IP)IP20

Device width120 mm

Device height50 mm

Device depth54 mm

Halogen freeYes

Insulated installationYes

With loop-through functionYes

With on/off switchNo

With micro fuseNo

With functional lightingNo

With hinged lidNo

With orientation lightingNo

With signal lampNo

With built-in USB power supplyNo

With increased contact protectionYes

Mounting typeDevice installation channel

Nominal voltage250V

Rated current16A

SurfaceUntreated

RAL number (similar)6029

Impact resistanceIK07

Protective contactYes

Protective conductor contact roundNo

Special power supplySafety supply (green)

Text field/label areaYes

TransparentNo

Twisted central insertNo

MaterialPlastic

Material qualityThermoplastic

Overvoltage protectionNo
