Theben 1020802 theLeda S17-100 WH white LED spotlight

Theben 1020802 theLeda S17-100 WH white LED spotlight

In stock

SKU: 838159

Price on request

€139.85

€0

Overview

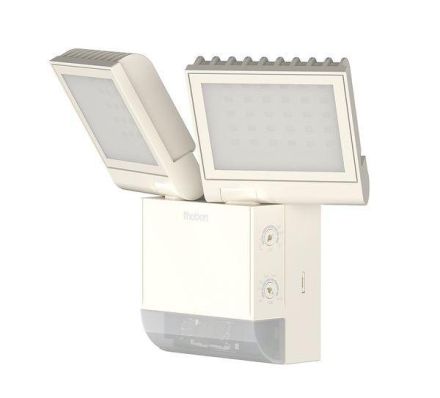

LED spotlight for wall mounting with motion detector, white, 4000 K, 2x900 lm, 2 LED spotlights with a total of 17 W, detection range 180° 10 m, additional light switching output, can be networked via wire

Property	Value
Max. System power:	17 W
Rated luminous flux according to IEC 62722-2-1:	1800 lm
Housing color:	white
Housing material:	plastic
Protection class (IP):	IP55
Socket:	without
Light source:	LED not replaceable
Protection class:	I
With light source:	yes
With operating device:	yes
Suitable for recessed mounting:	no
Length:	50 mm
Width:	167 mm
Height/depth:	160 mm
With motion detector:	yes
Color temperature:	4000 K
Nominal voltage:	230 V
Beam angle:	wide beam 41-80°
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	no
Light distribution:	symmetrical
Operating device:	not required
Impact resistance:	IK04
Luminaire with limited surface temperature 'D-mark':	no
Reflector:	high gloss
Luminous flux:	1800 lm
Cover material:	transparent plastic
Covering of the lamp with thermal insulation material possible:	no
Voltage type:	AC
Light color:	white
Suitable for track mounting:	no
Adjustability:	rotatable and pivotable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for platform/floor mounting:	no
Suitable for traverse mounting:	no
With light sensor:	yes
Suitable for surface mounting:	yes
Suitable for cable system:	no
Surface:	painted
Brushed surface:	no
LED nominal current at constant current:	0 to 10 mA
Dimming depending on the operating device:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (device integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	yes
Dimming mains voltage modulation:	no
Dimming Trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	yes
Light distributor:	Reflector
Light emission:	direct
Total harmonic distortion (THD):	27
Rated service life L70/B50 at 25 °C:	50000 h
Protection class (NEMA):	4
Rated ambient temperature according to IEC62722-2-1:	-20 to 55 °C
Type of wiring:	suitable for through wiring
Power factor:	1.05
Number of poles:	4
Conductor cross-section:	2.5 mm²
Connectable conductor cross-section:	0 to 2.5 mm²
Connection type:	screw terminal
Luminaire luminous efficacy:	105 lm/W
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
Photobiological safety according to EN 62471:	RG0
Colour consistency (McAdam ellipse):	SDCM6

Characteristics

Total harmonic distortion (THD)27

Connectable conductor cross-section0 to 2.5 mm²

HABTheLeda S17-100 WH white

Manufacturer

HAN1020802

GTIN4003468101902

Covering the luminaire with thermal insulation material possibleNo

Connection typeScrew terminal

Type of wiringSuitable for through wiring

Beam angleWide beam 41-80°

Rated lifetime L70/B50 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-11800lm

Rated ambient temperature according to IEC62722-2-1-20 to 55 °C

Operating deviceNot required

Width167 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificYes

Dimming with push buttonNo

Dimming programmableNo

Color consistency (McAdam ellipse)SDCM6

Color temperature4000K

Color rendering index CRI80-89

VersionWithout

Suitable for surface mountingYes

Suitable for ceiling mountingNo

Suitable for flush mountingNo

Suitable for clamp mountingNo

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth160 mm

LED nominal current at constant current0 to 10 mA

Power factor1.05

Conductor cross-section2.5 mm²

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy105lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux1800lm

Light distributorReflector

Light distributionSymmetrical

Length50 mm

Max. system performance17 W

With operating deviceYes

With motion detectorYes

With light sourceYes

With light sensorYes

Nominal voltage230V

SurfacePainted

Brushed surfaceNo

Without dimming functionYes

Photobiological safety according to EN 62471RG0

Number of poles4

ReflectorHigh gloss

Impact resistanceIK04

IP protection)IP55

Protection class (NEMA)4

Protection classI

Voltage typeAC

AdjustabilityRotatable and pivotable

Cover materialPlastic transparent

Housing materialPlastic
