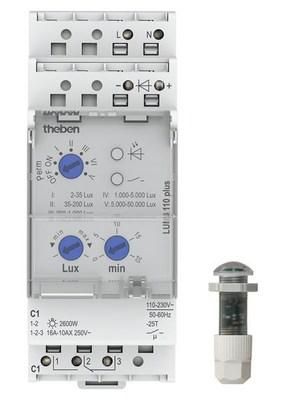

Theben 1100910 LUNA110 plus with surface-mounted light sensor twilight switch

In stock
SKU: 546471
€124.46
Into a basketIn the basketGo

Overview

Analog twilight switch, external surface-mounted light sensor included, adjustable on and off delay, display of the channel and switching status, DuoFix spring terminals, extended brightness range and adjustable delay time, 600 watt LED output, zero-crossing switching to protect the relay contact and lamp for a longer service life, permanent OFF and permanent ON function adjustable on the potentiometer, test function, switching brightness continuously adjustable

Property Value
Rated voltage: 230 V
Rated frequency: 50 to 60 Hz
Max. incandescent lamp load: 3600 W
Max. fluorescent lamp load: 3600 VA
Max. fluorescent lamp load (duo circuit): 3600 VA
Max. Fluorescent lamp load (parallel compensated): 1200 VA
Rated switching current: 16 A
Brightness value setting range: 2 to 50000 lx
With programmable night switch-off: no
Button input: no
Max. Cable length light sensor: 100 m
Protection class light sensor: II
Mounting type light sensor: Wall mounting
Mounting type: DIN rail
Width in pitch units: 2
Installation depth: 69.2 mm
Protection class (IP): IP20
Protection class (IP), light sensor: IP65

Characteristics

Rated frequency50 to 60 Hz
Max. fluorescent lamp load3600 VA
HABLUNA110 plus with surface-mounted light sensor
ManufacturerTHEBEN
HAN1100910
GTIN4003468110027
Rated voltage230V
Width in pitch units2
Installation depth69.2 mm
Mounting typeDIN rail
IP protection)IP20
