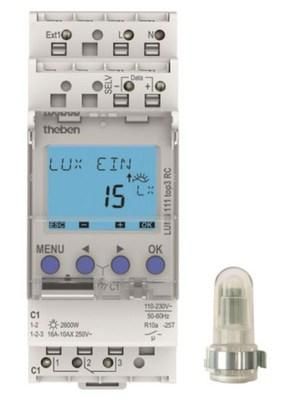

Theben 1110130 LUNA111 top3 with surface-mounted light sensor twilight switch

In stock

SKU: 546453

Price on request

€163.23

€0

Overview

Digital twilight switch/light control device, 1 channel, separate surface-mounted light sensor (IP 55) included, 1-99,000 lx, external input, width 2 HP, app programming possible, secure transmission via optional Bluetooth Low Energy OBELISK top3, maximum protection against manipulation, programs can only be transferred from the app to the clock if the Bluetooth OBELISK top3 is plugged into the clock, 600 watt LED power, 800 amps/200 microseconds inrush current, low standby power, operating hour counter, DuoFix plug-in terminals, power reserve, OBELISK interface for PC programming

Property	Value
Rated voltage:	230 V
Rated frequency:	50 to 60 Hz
Max. incandescent lamp load:	3600 W
Max. fluorescent lamp load:	3600 VA
Max. fluorescent lamp load (duo circuit):	3600 VA
Max. fluorescent lamp load (parallel compensated):	1200 VA
Max. Switching current (cos phi = 0.6):	10 A
Rated switching current:	16 A
Brightness value setting range:	1 to 99000 lx
With programmable night-time switch-off:	no
Button input:	yes
Max. Cable length light sensor:	100 m
Protection class light sensor:	II
Mounting type light sensor:	Wall mounting
Mounting type:	DIN rail
Width in pitch units:	2
Installation depth:	69.2 mm
Protection class (IP):	IP20
Protection class (IP), light sensor:	IP55
