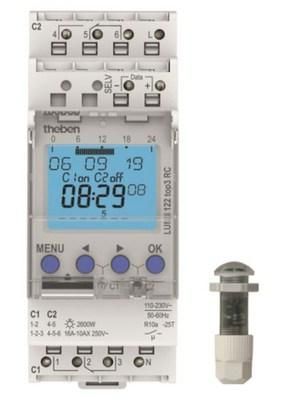

Theben 1220230 LUNA122 top3 RC with built-in light sensor twilight switch

In stock
SKU: 546460
€273.96
Into a basketIn the basketGo

Overview

Digital twilight switch/light control device with integrated timer, 2 channels, weekly program, separate built-in light sensor (IP 66) included, DCF or GPS radio control with external antenna possible, 1-99,000 lx, 3 special programs with annual function, channel switching and channel locking, width 2 HP, app programming possible, secure transmission via optional Bluetooth Low Energy OBELISK top3, maximum security against manipulation, timer programs can only be transferred from the app to the clock if the Bluetooth OBELISK top3 is plugged into the clock, 600 watt LED power, 800 amps/200 s inrush current, low standby power, operating hour counter, pulse program, DuoFix plug-in terminals, power reserve and programmed summer/winter time change, OBELISK interface for PC programming

Features Value
Rated voltage: 230 V
Rated frequency: 50 to 60 Hz
Max. incandescent lamp load: 3600 W
Max. fluorescent lamp load: 3600 VA
Max. fluorescent lamp load (duo circuit): 3600 VA
Max. fluorescent lamp load (parallel compensated): 1200 VA
Max. Switching current (cos phi = 0.6): 10 A
Rated switching current: 16 A
Brightness value setting range: 1 to 99000 lx
With programmable night-time switch-off: yes
Button input: no
Max. Cable length light sensor: 100 m
Protection class light sensor: II
Mounting type light sensor: Built-in
Mounting type: DIN rail
Width in pitch units: 2
Installation depth: 69.2 mm
Protection class (IP): IP20
Protection class (IP), light sensor: IP66

Characteristics

Rated frequency50 to 60 Hz
Max. fluorescent lamp load3600 VA
HABLUNA122 top3 RC with built-in light sensor
ManufacturerTHEBEN
HAN1220230
GTIN4003468120132
Rated voltage230V
Width in pitch units2
Installation depth69.2 mm
Mounting typeDIN rail
IP protection)IP20
