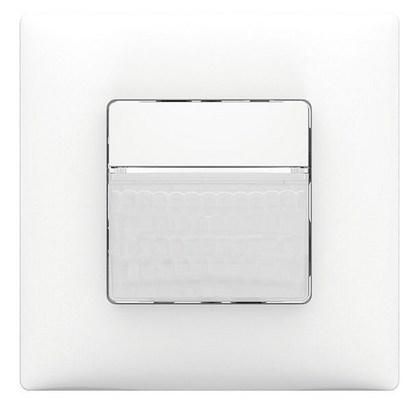

Theben 2060670 theMura S180-100 2W UP WH motion detector

Theben 2060670 theMura S180-100 2W UP WH motion detector

In stock

SKU: 546477

Price on request

€89.22

€0

Overview

Passive infrared motion detector for flush-mounted wall mounting, 1 channel light (2-wire version in combination with an ELPA staircase light timer for switching the lamp loads), with Theben cover frame, semi-circular detection range 170° up to 14x17 m, automatic presence and brightness-dependent control for lighting, adjustable brightness switching value, teach-in function, pulse function, switch-on delay and follow-up time adjustable, restriction of the detection range possible, integrated button (can be blocked), extension of the detection range through parallel connection

Property	Value
Depth:	50 mm
Width:	85 mm
Height:	85 mm
Design:	Motion detector
Color:	white
Rated voltage:	230 V
RAL number (similar):	9010
Material:	Plastic
Mounting type:	Flush-mounted
Response brightness:	5 to 1000 lx
Protection class (IP):	IP20
Voltage type:	AC
Max. Range to one side:	7 m
Scan angle:	170 °
Suitable for wall mounting:	yes
Creep-under protection/rear field monitoring:	no
Temperature:	-15 to 45 °C
Adjustable response brightness:	yes
Adjustable response sensitivity:	yes
Max. Frontal range:	17 m
Sensor type:	passive infrared
Optimal installation height:	1.2 m
Surface finish:	glossy
Surface:	untreated
Material quality:	thermoplastic
Detection field diameter on floor:	17 m
Switch-off delay:	1800 s
Horizontal detection angle:	0 to 170 °
Frequency:	50 to 60 Hz
Halogen-free:	no
Constant light control:	no
HVAC control:	no
Forced shutdown:	no
Animal corridor:	no
Networkable:	yes
Staircase monitoring:	yes
Bypass switch:	no
Suitable for wireless transmission:	no
Remote controllable:	no
With signal unit:	no
Alarm function:	no
Teach function for response brightness:	yes
Dimming function with dimming insert:	no
Transparent:	no
With remote control:	no
Suitable for C load:	no
With DALI interface:	no
Extension input:	no
Forced switching on:	no
Suitable for ceiling mounting:	no
Connection type:	Plug-in terminal
Antibacterial treatment:	no
Impact resistance:	IK04
Min. inrush current:	0.1 A
Diameter:	85 mm
Installation width:	85 mm
Installation depth:	32 mm
Min. depth of device box:	35 mm

Characteristics

Bridging switchNo

With signal unitNo

Response brightness5 to 1000 lx

Forced shutdownNo

Scanning angle170 °

Forced switching onNo

HABTheMura S180-100 2W UP WH

Manufacturer

HAN2060670

GTIN4003468200148

Dimming function with dimming insertNo

Alarm functionNo

Connection typePlug-in terminal

Response sensitivity adjustableYes

Response brightness adjustableYes

Antibacterial treatmentNo

VersionMotion detector

Surface finishGlittering

Width85 mm

Diameter85 mm

Installation width85 mm

Installation depth32 mm

Detection field diameter on floor17m

Detection angle horizontal0 to 170 °

Color

Remote controllableNo

Frequency50 to 60 Hz

Suitable for C-loadNo

Suitable for ceiling mountingNo

Suitable for wall mountingYes

Suitable for wireless transmissionNo

HVAC controlNo

Halogen freeNo

Height85 mm

Constant light controlNo

Max. range frontal17m

Max. range to one side7m

Min. depth of the device box35 mm

With DALI interfaceNo

With remoteNo

Mounting typeFlush-mounted

Extension inputNo

Nominal voltage230V

SurfaceUntreated

Optimal mounting height1.2m

RAL number (similar)9010

Impact resistanceIK04

IP protection)IP20

Sensor typePassive infrared

Voltage typeAC

Teach function for response brightnessYes

Temperature-15 to 45 °C

Depth50 mm

Animal corridorNo

TransparentNo

Staircase monitoringYes

Creep protection/rear field monitoringNo

NetworkableYes

MaterialPlastic

Material qualityThermoplastic
