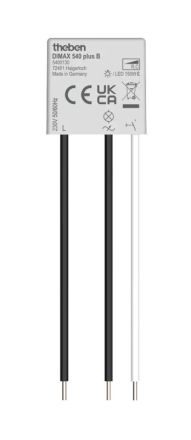

Theben 5400130 for incandescent/halogen and LED lamps UP dimmer

In stock
SKU: 893111
€34.87
Into a basketIn the basketGo

Overview

UP dimmer for R and C loads, optimized settings for LEDs, incandescent and halogen lamps, completely encapsulated electronics, no neutral conductor required, small design, perfect for retrofitting, temperature shutdown, overcurrent shutdown, short-circuit protection, memory function, minimum brightness function

Property Value
Device height: 27 mm
Device width: 26 mm
Device depth: 10 mm
Connection type: other
Wire cross-section: 0.5 to 2.5 mm²
Mounting type: Flush-mounted
Dimming leading edge: no
Dimming trailing edge: yes
Nominal voltage: 230 V
Color: white
Suitable for protection class (IP): other
Operating type: other
Halogen-free: yes
Composition: Basic element
Load type: ohmic load
Series dimmer: no
Extension input: no
Light value memory: no
Can be used with button: yes
Can be used with motion detector: no
Can be used with presence detector: no
Can be used with timer: no
Can be used with radio button: no
Can be used with IR button: no
Mounting type: other
Material: plastic
Material quality: thermoplastic
Surface: untreated
Surface finish: matt
RAL number (similar): 1013
Frequency: 50 Hz
Control voltage: 230 V
Transparent: no
App control via Bluetooth: no
Impact resistance: IK04
Min. depth of the device box: 20 mm

Characteristics

Core cross-section0.5 to 2.5 mm²
HABFor incandescent/halogen and LED lamps
ManufacturerTHEBEN
HAN5400130
GTIN4003468540060
Connection typeOther
Surface finishFrosted
Operating modeOther
Mounting typeOther
Dimming trailing edgeYes
Dimming phase controlNo
ColorWhite
Frequency50Hz
Suitable for protection class (IP)Other
Device width26 mm
Device height27 mm
Device depth10 mm
Halogen freeYes
Min. depth of the device box20 mm
Mounting typeFlush-mounted
Extension inputNo
Nominal voltage230V
SurfaceUntreated
RAL number (similar)1013
Impact resistanceIK04
TransparentNo
MaterialPlastic
Material qualityThermoplastic
CompilationBasic element
Theben 5400130 for incandescent/halogen and LED lamps UP dimmer
Theben 5400130 for incandescent/halogen and LED lamps UP dimmer
€34.87
Into a basketIn the basketGo
