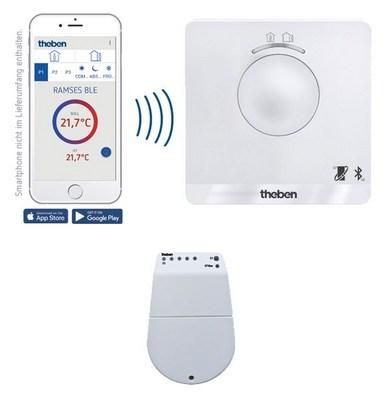

Theben 8169152 RAMSES 816 BLE 3 (2x Rel.) Digital clock thermostat

In stock
SKU: 546489
€212.24
Into a basketIn the basketGo

Overview

Digital clock thermostat with external switch box and weekly program, operation via app, direct Bluetooth low energy connection (BLE) between app and RAMSES BLE, no communication via the Internet, settings conveniently via app with intuitive operation from smartphone or tablet, 1 x relay 10 A potential-free, 1 x relay 5 A, potential-free, for heaters with 2-stage control, hysteresis adjustable between level 1 and level 2, (temperature difference between actual room temperature and target room temperature adjustable from 0.5 °C to 2.5 °C in 0.5 increments), heating and cooling function possible, heating from 20 °C downwards with relay 1, cooling start temperatures (range 20-30 °C), waiting time adjustable to switch between heating and cooling (1-50 hours), increased ease of use, no display on the device, changeable basic programs, programmable switching times, Optimization function, frost protection

Property Value
Type of power supply: 230 V
Connection: three-/four-wire
With receiver: no
Measuring range: 2 to 30 °C
Sensor external: no
With thermal feedback: yes
Control characteristics: PI
Heating: yes
Number of heating outputs: 1
Difference value: 0.2 to 5 K
Difference adjustable: yes
Selector switch for heating and hot water with heating: no
Sensor design: Bimetal
Temperature readable: no
With display: no
Clock type: Weekly clock
Clock design: digital
Overtime switch: yes
Optimization: yes
With drinking water circuit: no
Operation: Rotary
Weather-dependent control: no
Number of switching programs: 42
Max. voltage of contacts: 250 V
Max. Contact load: 10 A
Protection class (IP): IP20
Protection class (NEMA): 1
Explosion-proof: no
RAL number: 9010
Width: 89 mm
Depth: 28 mm
Height: 89 mm
Class of Temperature controller: IV
Power consumption in standby mode (solstandby): 0.4 W

Characteristics

OperationTurn
Class of temperature controllerIV
Sensor/sensor designBimetal
Temperature can be readNo
HABRAMSES 816 BLE 3 (2x Rel.)
ManufacturerTHEBEN
HAN8169152
GTIN4003468810064
Width89 mm
Explosion-proofNo
Height89 mm
With displayNo
RAL number9010
IP protection)IP20
Protection class (NEMA)1
Depth28 mm
