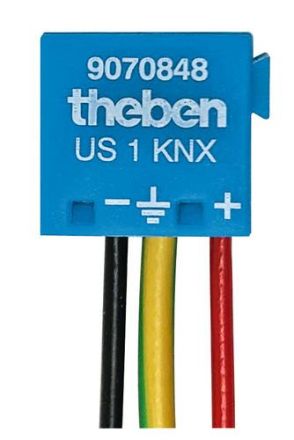

Theben 9070848 US 1 KNX surge arrester

Theben 9070848 US 1 KNX surge arrester

In stock

SKU: 838139

Price on request

€55.11

€0

Into a basketIn the basketGo

Overview

Surge arrester in the form of a KNX bus terminal, as fine surge protection in KNX or LUXORliving systems

Property	Value
Signaling on the device:	without
Mounting type:	other
Nominal discharge current (8/20):	5 kA
Nominal load current:	6 A
Connection 1:	Terminal
Highest continuous voltage DC:	45 V
Protection level wire/wire:	1200 V
Protection level wire/earth:	650 V
Protection level signal ground/protective ground:	500 V
Protection level wire/signal ground:	750 V
With remote signaling contact:	no
Explosion-tested version:	no
Arrester monitoring:	no
Nominal voltage DC:	0 to 24 V
Limit frequency:	70 MHz
Lightning impulse current (10/350 µs):	1 kA

Characteristics

Explosion-tested versionNo

Lightning surge current (10/350 µs)1 kA

With remote signaling contactNo

Connection 1Clamp

Highest continuous voltage DC45 V

Nominal load current6 A

Nominal voltage DC0 to 24V

Protection level wire/wire1200 V

Protection level wire/earth650 V

Limit frequency70 MHz

HABUS 1 KNX

Manufacturer

HAN9070848

GTIN4003468905708

Mounting typeOther

Nominal discharge current (8/20)5kA

Signaling on the deviceWithout
