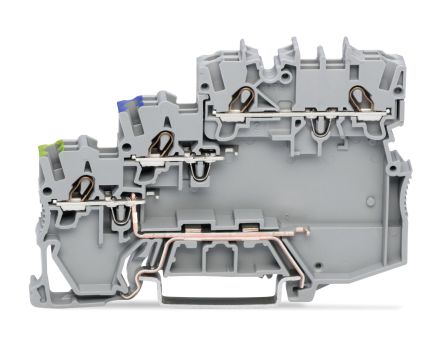

Wago 2000-5317/102-000 3-wire actuator terminal

In stock

SKU: 833952

Price on request

€7.90

€0

Overview

Pitch width 3.5 mm per signal (2 x 3.5 mm = 7 mm) The double pitch width of this terminal family enables the connection of e.g. B. ten sensors with only five initiator terminals plus one feed terminal.

Property	Value
Connectable conductor cross-section, fine-stranded with wire end ferrule:	0.5 to 0.75 mm²
Connectable conductor cross-section, solid-stranded:	0.5 to 1.5 mm²
Connectable conductor cross-section, fine-stranded without wire end ferrule:	0.14 to 1.5 mm²
Rated current In:	13.5 A
Connectable conductor cross-section stranded:	0.14 to 1 mm²
Operating temperature:	105 °C
Color:	gray
Rated voltage:	250 V
Number of levels:	3
Connection:	Spring-loaded connection
Design of electrical connection 2:	Spring-loaded connection
Mounting type:	DIN rail TH35
Flammability class of the insulating material according to UL94:	V0
End plate required:	yes
LED switching for:	PNP
With PE connection:	yes
With shield connection:	no
With feed-in function:	no
Number of terminal points per level:	2
Levels bridged internally:	no
Cross-connectable:	yes
Separation function:	no
Explosion-tested version Ex e:	no
Material of the insulating body:	Thermoplastic
Width:	7 mm
Height:	81.1 mm
Depth:	52.4 mm
