Wago 2000-5377/102-000 Initiator/Actuator Terminal 3E Series 2000

In stock

SKU: 965090

Price on request

€10.43

€0

Overview

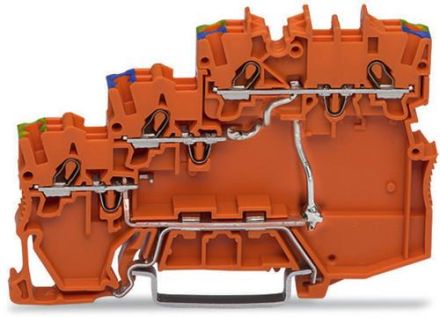

3-wire actuator feed terminal, for PNP (plus) switching actuators, with PE connection, with color-printed conductor entries, 1 mm², Push-in CAGE CLAMP®, 1.00 mm², orange

Property	Value
Connectable conductor cross-section, fine-stranded with wire end ferrule:	0.5 to 0.75 mm²
Connectable conductor cross-section, single-stranded:	0.5 to 1.5 mm²
Connectable conductor cross-section, fine-stranded without wire end ferrule:	0.14 to 1.5 mm²
Rated current In:	13.5 A
Connectable conductor cross-section, stranded:	0.14 to 1 mm²
Operating temperature:	105 °C
Color:	orange
Rated voltage:	250 V
Number of levels:	3
Connection:	Spring-loaded connection
Design of electrical connection 2:	Spring-loaded connection
Mounting type:	DIN rail TH35
Flammability class of the insulating material according to UL94:	V0
End plate required:	yes
LED switching for:	PNP
With PE connection:	yes
With shield connection:	no
With feed-in function:	yes
Number of terminal points per Level:	2
Levels internally bridged:	yes
Cross-connectable:	yes
Isolation function:	no
Explosion-tested version Ex e:	no
Material of the insulating body:	Thermoplastic
Width:	7 mm
Height:	81.1 mm
Depth:	54.4 mm
