Wago 2000-5417/1101-951 Initiator/Actuator Terminal 4E Series 2000

In stock

SKU: 965093

Price on request

€19.87

€0

Overview

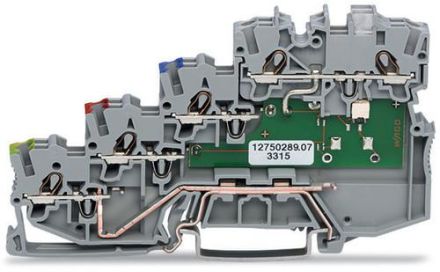

4-wire initiator terminal, yellow LED, for NPN (minus) switching initiators, with PE connection, 1 mm², Push-in CAGE CLAMP®, 1.00 mm², gray

Property	Value
Connectable conductor cross-section, fine-stranded with wire end ferrule:	0.5 to 0.75 mm²
Connectable conductor cross-section, single-stranded:	0.5 to 1.5 mm²
Color of the lamp:	other
Connectable conductor cross-section, fine-stranded without wire end ferrule:	0.14 to 1.5 mm²
Rated current In:	13.5 A
Connectable conductor cross-section, stranded:	0.14 to 1 mm²
Operating temperature:	105 °C
Color:	gray
Rated voltage:	24 V
Number of levels:	4
Connection:	Spring-loaded connection
Design of electrical connection 2:	Spring-loaded connection
Mounting type:	DIN rail TH35
Flammability class of the insulating material according to UL94:	V0
End plate required:	yes
LED switching for:	NPN
With PE connection:	yes
With shield connection:	no
With feed-in function:	no
Number of terminal points per level:	2
Levels bridged internally:	no
Can be connected crosswise:	yes
Isolation function:	no
Explosion-tested version Ex e:	no
Material of the insulating body:	Thermoplastic
Width:	7 mm
Height:	97.3 mm
Depth:	52.4 mm
