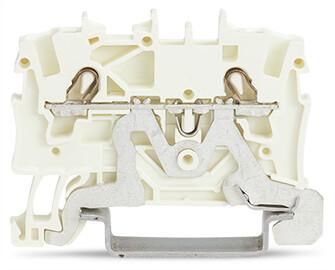

Wago 2001-1208 2-conductor shield terminal

In stock

SKU: 965109

Price on request

€2.37

€0

Overview

2-conductor shielded conductor terminal

Property	Value
Operating temperature:	105 °C
QS single-wire:	0.5 to 2.5 mm²
QS multi-wire:	0.25 to 1.5 mm²
Connectable conductor cross-section, finely stranded without wire end ferrule:	0.25 to 2.5 mm²
QS wire end ferrule:	0.75 to 1.5 mm²
PEN function:	no
Connection:	spring-loaded connection
Design of electrical connection 2:	spring-loaded connection
Levels:	1
Terminal points per level:	2
Color:	white
Mounting type:	top hat rail TH35
Flammability class of the insulating material according to UL94:	V0
End plate required:	yes
Material of the insulating body:	Thermoplastic
Width:	4.2 mm
Height:	50.8 mm
Depth:	32.9 mm
