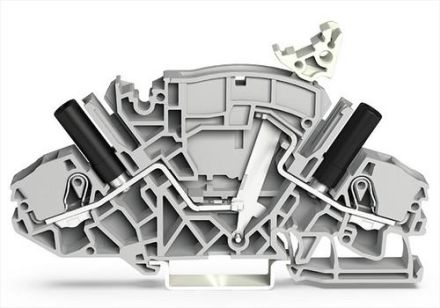

Wago 2007-8811/046-000 isolating terminal block size 1 - 10qmm test b 30A

In stock

SKU: 970477

Price on request

€11.41

€0

Overview

2-wire isolating and measuring terminal, e.g. B. for voltage transformer circuits, with touch-proof test sockets, for test plugs Ø 4 mm, for mounting rail 35 x 15 and 35 x 7.5, 6 mm², Push-in CAGE CLAMP®, 6.00 mm², grey

Property	Value
QS single-wire:	1 to 10 mm²
QS multi-wire:	0.5 to 6 mm²
QS fine-wire:	0.5 to 10 mm²
QS wire end ferrule:	1.5 to 6 mm²
Current In:	30 A
Operating temperature:	105 °C
Rated voltage:	500 V
Design of electrical connection 1:	Spring-loaded connection
Design of electrical connection 2:	Spring-loaded connection
Floors:	1
Terminal points per floor:	2
Floors internally bridged:	no
Mounting type:	DIN rail TH35
Flammability class of the insulating material according to UL94:	V0
AP required:	yes
Color:	grey
Design of the longitudinal separation:	without
Design of the transverse separation:	without
With integrated test socket:	yes
Material of the insulating body:	Thermoplastic
Width:	8 mm
Height:	99.6 mm
Depth:	65.3 mm
