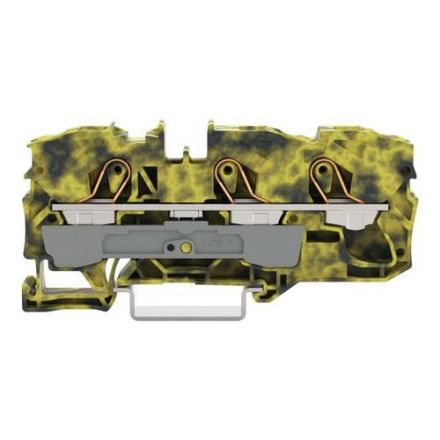

Wago 2010-1301/000-053 terminal block 0.5 - 16qmm 1 level 3kl gr

In stock
SKU: 972118
€5.84
Into a basketIn the basketGo

Overview

3-conductor feed-through terminal, 10 mm², suitable for Ex e II applications, side and center labeling, for mounting rail 35 x 15 and 35 x 7.5, Push-in CAGE CLAMP®, 10.00 mm², dark gray-yellow

Property Value
QS single-wire: 2.5 to 16 mm²
QS fine-wire: 0.5 to 16 mm²
QS multi-wire: 0.5 to 10 mm²
Color: multi-colored
QS wire end ferrule: 2.5 to 10 mm²
Rated voltage: 800 V
Levels: 1
Terminal points per level: 3
Rated current In: 57 A
Operating temperature: 105 °C
Connection: Spring-loaded connection
Design of electrical connection 2: Spring-loaded connection
Mounting type: DIN rail TH35
Flammability class of the insulating material according to UL94: V0
End plate required: yes
Levels bridged internally: no
Material of the insulating body: Thermoplastic
Explosion-tested version Ex e: yes
Width: 10 mm
Height: 89 mm
Depth: 36.9 mm

Characteristics

Minimal order25 pcs
ManufacturerWago
HAN2010-1301/000-053
GTIN4055144053906
Rated voltage800V
Rated current In57 A
Operating temperatur105°C
Width10 mm
Height89 mm
Mounting typeDIN rail TH35
Depth36.9 mm
