Wago 2020-107/000-036 terminal block 0.14-1.5qmm series 2020

In stock

SKU: 969408

Price on request

€7.59

€0

Overview

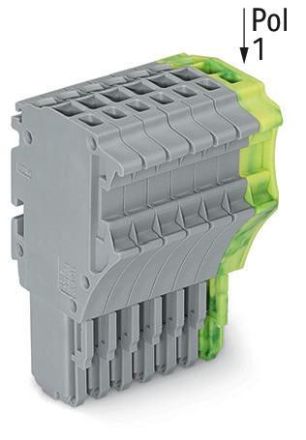

1-conductor female connector, Push-in CAGE CLAMP®, 1.5 mm², pitch 3.5 mm, 7-pin, 1.50 mm², grey/green-yellow

Property	Value
Number of poles:	7
Rated voltage:	500 V
Material of the insulating body:	Thermoplastic
Rated current In:	13.5 A
Color:	multi-colored
Operating temperature:	105 °C
QS fine-stranded:	0.14 to 1.5 mm²
QS single-stranded:	0.5 to 1.5 mm²
QS multi-stranded:	0.14 to 1 mm²
QS wire end ferrule:	0.5 to 0.75 mm²
Mounting type:	other
Design of electrical connection 1:	Spring-loaded connection
Design of electrical connection 2:	Spring-loaded connection
Number of terminal points per pole:	1
Flammability class of the insulating material according to UL94:	V0
End plate required:	no
Explosion-tested version Ex e:	no
Transparent:	no
Halogen-free:	yes
Width:	25.2 mm
Height:	22.4 mm
Depth:	40.5 mm
