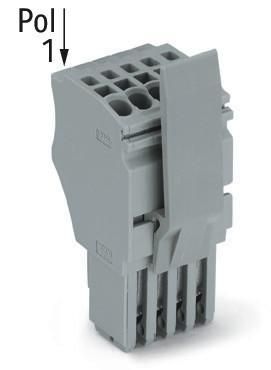

Wago 2020-113/125-000 R3.5mm, 13p, 0.14mm² terminal block

In stock

SKU: 969747

Price on request

€10.18

€0

Overview

1-conductor female connector, Push-in CAGE CLAMP®, 1.5 mm², pitch 3.5 mm, 13-pin, central locking latch, 1.50 mm², gray

Property	Value
Number of poles:	13
Rated voltage:	500 V
Material of the insulating body:	Thermoplastic
Rated current In:	13.5 A
Color:	gray
Operating temperature:	105 °C
QS fine-stranded:	0.14 to 1.5 mm²
QS single-stranded:	0.5 to 1.5 mm²
QS multi-stranded:	0.14 to 1 mm²
QS wire end ferrule:	0.5 to 0.75 mm²
Mounting type:	other
Design of electrical connection 1:	Spring-loaded connection
Design of electrical connection 2:	Spring-loaded connection
Number of terminal points per pole:	1
Flammability class of the insulating material according to UL94:	V0
End plate required:	no
Explosion-tested version Ex e:	no
Transparent:	no
Halogen-free:	yes
Width:	46.2 mm
Height:	27.2 mm
Depth:	48.9 mm
